Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Exporting Container
Production Capacity
30sets /Year
Packaging & Delivery
Package Size
159.00cm * 195.00cm * 250.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description
PET flakes washing recycling line waste pet bottle crushing recycling line

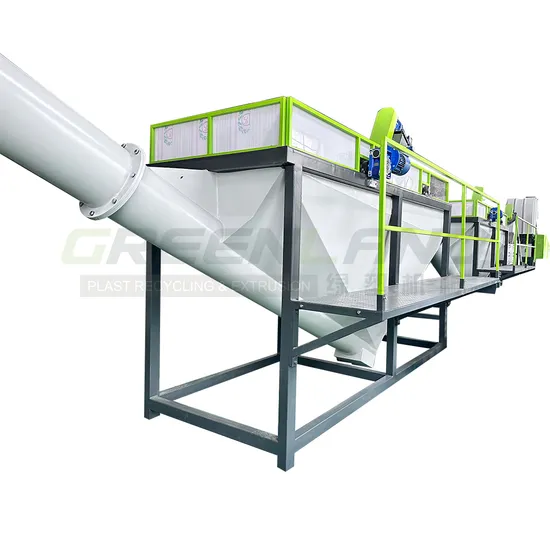

This PET bottle recycling line is mainly used to recycle waste PET bottles to make PET flakes ,mainly inclue de-baling machine, conveyor belt, label remover, sorting system,crushing, floating washing tank, hot washing tank, frication washing, dewatering &hot air drying system, label separator a,with the above machines and process can easily to remove the labels, caps, rings, glue, dirties and other impurities, finally you will produce to clean PET flakes.It can reach achieve request of "Bottle to Bottle" ,"Bottle to Fiber product"
We can make recycling line according to different customize requirements!
Product Parameters
Technical dates
Capacity | Installation power | Area required | Labor required | Water supply |
500kg/h | 155kwh | 35*10*6m | 5-6 | 3t/h |
1000kg/h | 285kwh | 50*12*6m | 6-8 | 4t/h |
1500kg/h | 350kwh | 70*12*6m | 6-8 | 5t/h |
2000kg/h | 485kwh | 80*15*6m | 9-10 | 6t/h |
3000kg/h | 690kwh | 100*18*7m | 10-12 | 7t/h |
Detailed Photos
1)Label remover
2)Crushing machine
3)Hot washing machine
4)Cold floating washing tank
5)Dewatering machine
Packaging & Shipping
>>
