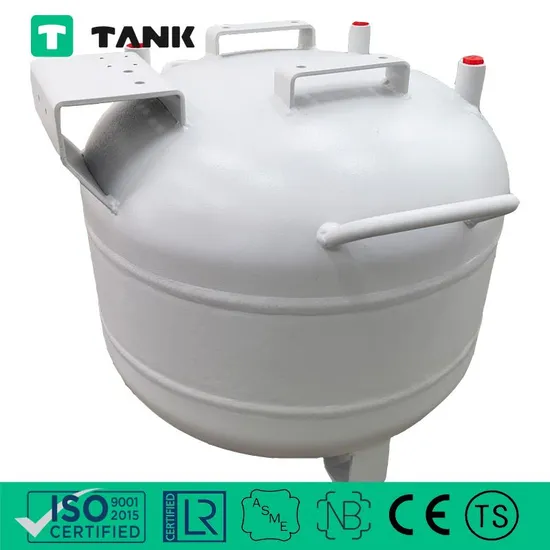

ASME or PED Code Vertical Air Receiver for Dental Treatment

US$440.00
20-49 Pieces
US$410.00
50-99 Pieces
US$390.00
100-999 Pieces
US$360.00
1,000+ Pieces

Basic Info.

Model NO.
C-0.05/0.8
Application
Gas
Material
Carbon Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Inner Coating
Waterborne Acrylic Primer
Default Color
The Default Color Is Ral7035
Dry Film Thickness
120μm
Certifications
ASME Um Stamp/PED Module H
Transport Package
Wooden Boxes
Specification
50L
Trademark
TK
Origin
China
HS Code
73110090
Production Capacity
10000

Product Description

CODE:ASME SECT.VIII DIV.1 2021 EDITION
Code Certification:ASME Certification Mork wtih "UM" designator
Operating Pressure : 0.8MPa
Design Pressure : 0.88MPa
Temperature: 60-100ºC
Minimum design metal temperature(MDMT) at MAWP:20ºC at 0.88MPa
Hydrostatic test pressure:1.15MPa at 5-48ºC
Medium name:compressed air
Corrosion allowance:0mm
Gross volume:0.056m³
Empty weight:32 kg
This product is mainly used in the storage of compressed air used to clean the mouth during dental treatment, and the inside of the container is made of non-toxic and environmentally friendly water-based paint, which ensures the cleanliness of the interior and improves the corrosion resistance of the product.
The products are designed and manufactured based on ASME VIII-1 code, meet the requirements of ASME, PED, AS1210 and other standards, as well as DOSH, CRN, EAC, MOM and other certification modes for you to choose. If you have any customized needs on the pressure vessel, you can contact us.
Zhejiang tank pressure vessel Co., Ltd. is a manufacturer specializing in the production of customized pressure vessels, we has ASME U and UM stamp authorization, and has obtained ISO9001-2015 quality system certification and PED Module H and Module H1 certificates issued by LRQA.
Standards or specifications that our products can comply with:
Product category Design Code Certifications
Air Receiver ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Liquid Receiver ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Separator ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Adsorption Tank ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Heat Exchangers ASME VIII-1/GB150/GB151 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
