Laser Equipment Pulsed Laser Cleaning Machine 50W 100W 200W Portable Laser Cleaner 3000W

Product Description

Product Description

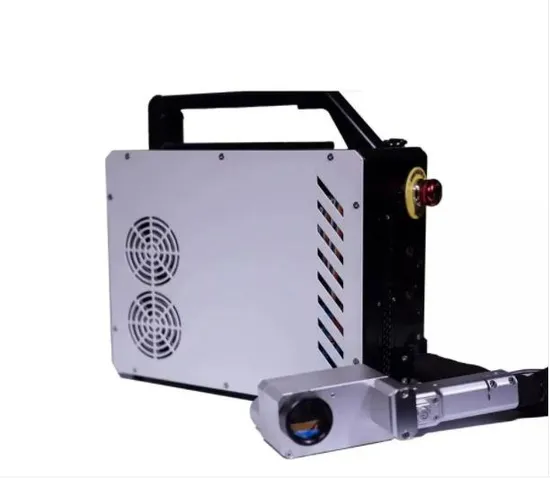

Portable Pulse Laser Rust Removal 50W 100W Fiber Laser Cleaning Machine
Fiber laser cleaning equipment is a new ganeration of high-tech production for surface cleaning.Easy to install, operate and automate.Simple operation, power on then can turn on the device to work.
It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features:
1.The chassis is equipped with a strap buckle, the strap can be carried on the shoulder, and the hands are freed
2.External battery, strong mobility;
3.Hand-held cleaning, exclusive mini laser head, durable and not tired, flexible and convenient;
4.Excellent data, some parameters are stronger than 200W,air-cooled laser cleaning machine, high cleaning efficiency;
5.The system is stable, easy to control, and has a service life up to 50,000 hours, which is cost-effective;
6.High cleaning precision, nano-level controllable, no damage to the substrate;
7.Green and environmental protection, no secondary pollution;
Product Parameters

Parameter name	50W parameter	100W parameter
Max average power(W)	50	100
Power range(%)	10-100	10-100
Output central wavelength(nm)	1064	1064
Bandwidth(nm)	5	5
Max pulse energy(mJ)	1.1	1.5
Pulse repetition rate(kHz)	45-170	20-200
Pulse width(ns)	100±10@45kHz	180±10@65kHz
Beam quality(M2)	1.6	1.6
Fiber length(m)	3	3
Min bending radius(mm)	150	150
System power supply requirement	220	220
Power Consumption(W)	350	550
Operating temperature(ºC)	10-40	10-40
Storage temperature(ºC)	-10-60	-10-60
Relative humidity(%)	<80	<80
System dimensions(L*W*H,mm)	318*285*127	359.5*380*152
Total weight(Kg)	7.8	10.5
Laser head weight(Kg)	<1.5	<1.5
Laser head type	2D scanning	2D scanning
Laser head scanning range(mm*mm)	100*100	100*100
Laser head focus length(mm)	160,254	160,254
Laser head operating mode	Manual/Auto	Manual/Auto
Laser safety classification	Class 4	Class 4

Machine Details
50W Product size 100W Product size
The Advantages of Laser Cleaning:
A.Laser cleaning a kind of "dry"cleaning,does not require cleaning fluid or other chemical solutions, will not cause secondary pollution,and the cleanliness is much higher than that of chemical cleaning processes;
B.Laser cleaning technology is aimed at a wide range of cleaning objects, such as various oxide particles, rust coating and surface organic matteretc, and is not limited by the substrate material;
C.laser cleaning is a non-contact processing,which can beoperated remotely, by adjusting the laser process parameters, it will not damage the substrate.
Sample Display
Application:
It can remove the resin, paiting,oil pollution, stains,dirt, rust,coating,plating,as well as oxide layer of item surface.
Widely used in many industries, such as shipbuilding, auto repair,rubber models,high-end machine tools, rails and environment protection etc.
Company Profile
Guangdong Gengseng Intelligent Equipment Co., Ltd is specialized in CNC Cutting &Welding automation solutions. With professional engineer team from HYD. CNC. We have started to supply CNC control system for plasma & oxyful cutting since 2004. Gradually we expanded our business to Turn-key system integration and complete cutting machine design and assembly. We got into Laser cutting field in 2008 when YAG laser cutting machine was very hot on market. Almost all YAG laser cutting machine manufacturers like DNE laser, Han
s laser...Used our CHC-300 cap sensors for laser cutting height control. Just because of that, Our cap height sensor CHC-1000 series for fiber laser cutting got delayed. When our CHC-1000 came to market in 2015, Cypcut system has taken all fiber laser cutting market in China. Simultaneous YAG laser cutting was being replaced by fiber laser cutting fastly. We had to work with PA8000, Beckhoff such foreign controllers for pipe cutting, laser welding and Robotic cutting...etc. Meanwhile, we started to offer complete fiber laser cutting machine, and machine integration service like robotic laser cutting, customized laser welding...Which opened a new world for us! More and more professional engineers joined our team in recent years, which enable us to make more and more automation solutions to clients around the world. We can support you to make machine on your own, or supply complete machine according to your request. Welcome to visit our factory in Foshan.
