Product Description
Product Description
Products Description

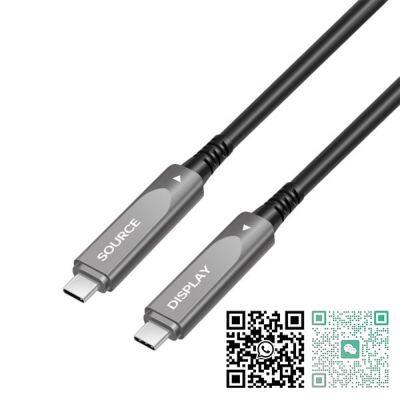

The FUCC-3202-015 USB3.2 Gen 2 Type-C Fiber Active Optical Extension Cable is also called USB-C AOC, USB-C Active Optical Cable, USB-C Fiber Active Optical Cable, Fiber Optic USB Cable, Optical USB Cable, Hybrid USB AOC,USB 3.2 Active Optical Cable. It is specifically designed to address the increasing demand of UHD resolutions video up to 8K/60Hz & high-bandwidth connection up to 10Gbps, providing plug-and-play links that surpass the limitations of traditional copper cables.
The USB 3.2 GEN 2 Type-C Fiber Active Optical Cable supports contemporary peripheral devices that utilize the latest USB 3.2 Gen 2 Type-C connection including immersive AR/VR devices, conference room cameras, machine vision systems, CCTV, or storage devices. With 10m length deliveying 60W/3A PD power, users can expect superior performance and a seamless plug-and-play experience for most meeting room and presenter’s desk applications. Say goodbye to the hassle of complicated setups and enjoy effortless connectivity with our USB 3.2 GEN 2 type-C to type-C AOCs.
Highlight Features:
UHD Video Resolutions: DP1.4 up to 8K@60 Hz & 4K@144 Hz for crystal-clear video
High Bandwidth: complied with the latest USB 3.2 Gen 2 standard, up to 10Gbps super speed
Backward Compatible: Supports USB 3.0 @ 5Gbps, USB 2.0
Long length Transmission: Delivers lossles signals over 15m maximum length
Power Delivery: PD 100W for 2m, PD 60W for 10m, PD40W for 15m maximum length to the remote device
Easy Installation: Plug and play for both sides
Easy Identification: directional design with laser marking identifying
Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
Customization: custom logo, packaging, and length up to 15m available
Applications:
3D Scanners
Airplane On-board Video System
Conference Room
Digital Signage
Gaming PC
Home Theatre
LED Signboards
Mobile Terminal
Medical imaging equipment
Radio and TV Broadcast Station
Security monitoring system
Virtual Reality Headsets
Video conference equipment
Web Cameras
Frequently Asked Questions:
Q: Are USB 3.2 Fiber Active Optical Extension Cables by AOCFIBERLINK compatible with all USB devices?
A: Though no USB standard currently exists for optical cables, USB 3.2 Active Fiber Optical Cables by AOCFIBERLINK have been successfully tested with more than a hundred devices spanning all major consumer operating systems. In general, you can expect USB 3.2 Active Fiber Optical Cables by AOCFIBERLINK to work with most self-powered USB 3.0/2.0 compliant device.
Q: Can I charge my portable device (like iPhone or iPad) with USB 3.2 Active Fiber Optical Extension Cables by AOCFIBERLINK ?
A: USB 3.2 Active Fiber Optical Extension Cables by AOCFIBERLINK are designed to be used with self-powered peripherals only. No significant power is available after powering its internal opto-electronics. A self-powered USB 3.0/2.0 hub can always be used at the peripheral (B-side) to provide power if desired.
Product Parameters
| Fiberlink P/N |
| FPUC-3202 |
| Source Connector | Interface | USB 3.2, type-C |
| Dimensions (LxWxH) | 34.5x13.8x8.5 mm |
| Display Connector | Interface | USB 3.2, type-C |
| Dimensions (LxWxH) | 34.5x13.8x8.5 mm |
| Cable | Diameter | Φ4.5mm |
| Type | Hybrid |
| Jacket | TPU |
| Bending Radius | 30mm |
| Performance | Bandwidth | 10Gbps |
| Compatible | USB 3.0/2.0 |
| Power Delivery | 20V/3A (max.) |
| Supporting | Windows/macOS/Linux |
| Length | Length | Up to 30m (if no USB 2.0 needed) |
>>
