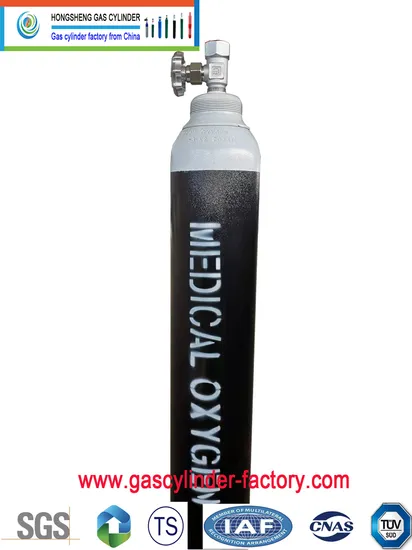

Wholesale 37mn Steel Material Medical 2.7-50L 150bar/200bar Oxygen Gas Cylinder

Product Description

2L ISO9809-1 gas bottle TPED 2.5L UT Oxygen tanks 200bar tuv 34CrMo4 gas cylinders

Shandong Hongsheng Pressure Vessel Co., Ltd. is a professional global gas cylinder manufacturer registered in China.
Registered in Qihe County, Dezhou City, Shandong Province, China, the company has obtained the Chinese production cylinder B1 license and TUV, CE certification
Product Information:

Name	parameter	Name	parameter
Volume	1.4 litres to 2.5 litres	Place of origin	Made in China
Cylinder outer diameter	108mm	Minimum design wall thickness	2.4mm
Material	34CrMo4	Cylinder body weight	2.81kg-4.29kg
Production standards	ISO9809-1	Height of the cylinder body	233mm-374mm
Working pressure	200BAR	Maximum gas storage	0.28m3-0.5m3 (280L-500L)
Hydrostatic test pressure	300BAR	Cylinder mouth threads include	PZ19.2,PZ27.8, 25E; 3/4-14 NGT, etc.
Aliases	2L 200bar Oxygen cylinders 2L 200bar Oxygen tanks; 2L 200bar gas cylinders; 200bar TPED Gas cylinders; 200bar gas tanks ISO9809-1 gas cylinders;Oxygen gas cylinders;Iso9809-1 Gas cylinders; ISO9809-1 gas cylinders.200 bar gas cylinders. 34 crmo4 gas cylinders. TPED gas tanks; Oxygen bomb; Gas cylinders; Medical Gas cylinders; Medical gas tanks. Medical gas bottle; 200bar Medical gas cylinders; 200bar Oxygen gas cylinders

Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.

200bar ISO9809-1 Gas cylinder product parameter sheet

Type	Outside Diameter (mm)	Water Capacity (L)	Bottle Height (mm)	Weight (kg)	Working pressure (Bar)	Design wall thickness (mm)	Material Grades
WG 89-0.8-200	89	0.8	197	1.60	200	2.0	34CrMo4
WG 89-1.0-200		1	240	1.83
WG 89-1.2-200		1.2	275	2.07
WG 89-1.4-200		1.4	310	2.30
WG 89-2.0-200		2	419	3.00
WG 108-1.4-200	108	1.4	233	2.81	200	2.4	34CrMo4
WG 108-1.8-200		1.8	284	3.34
WG 108-2.0-200		2	310	3.62
WG 108-3.0-200		3	440	4.96
WG 108-3.2-200		3.2	464	5.24
WG 108-3.5-200		3.5	503	5.64
WG 108-4.0-200		4	568	6.30
WG 108-4.6-200		4.6	645	7.11
WG 108-5.0-200		5	696	7.64
WG 140-3.4-200	140	3.4	324	5.30	200	3.1	34CrMo4
WG 140-4.0-200		4	375	5.89
WG 140-5.0-200		5	447	6.96
WG 140-6.0-200		6	516	7.56
WG 140-6.3-200		6.3	540	7.88
WG 140-6.7-200		6.7	569	8.30
WG 140-7.0-200		7	591	8.63
WG 140-7.1-200		7.1	598	8.74
WG 140-8.0-200		8	665	9.68
WG 140-9.0-200		9	744	10.7
WG 140-9.1-200		9.1	751	10.9
WG 140-10.0-200		10	818	11.9
WG 140-11.0-200		11	892	12.9
WG 140-12.0-200		12	966	14.3
WG 140-13.4-200		13.4	1069	15.5
WG 140-14.0-200		14	1112	16.4
WG 140-15.0-200		15	1188	17.5
WG 159-8.0-200	159	8	548	9.11	200	3.5	34CrMo4
WG 159-9.4-200		9.4	627	10.8
WG 159-10.0-200		10	660	10.9
WG 159-11.0-200		11	716	11.8
WG 159-12.0-200		12	780	13.1
WG 159-13.4-200		13.4	861	15.4
WG 159-15.0-200		15	932	16.8
WG 165-10.0-200	165	10	615	12.5	200	3.6	34CrMo4
WG 165-12.0-200		12	725	14.4
WG 165-15.0-200		15	880	17.2
WG 180-8.0-200	180	8	467	13.5	200	3.9	34CrMo4
WG 180-10.0-200		10	571	15.4
WG 180-13.4-200		13.4	721	18.6
WG 180-15.0-200		15	792	20.2
WG 180-18.0-200		18	924	23.1
WG 180-20.0-200		20	1012	24.8
ISO 232-40.0L-200	232	40.0	1167	43.0	200	6.0	34CrMo4
ISO 232-46.7L-200		46.7	1345	48.9
ISO 232-47.0L-200		47	1351	49.0
ISO 232-50.0L-200		50.0	1450	57.7
ISO 267-60.0-150	267	60	1330	66.7	150	5.8	37MN
ISO 267-68.0-150		68	1490	73.9
ISO 267-70.0-150		70	1530	75.7
ISO 267-80.0-150		80	1730	84.7

Gas cylinder production process
After-sales service guarantee of Shandong Hongsheng Pressure Vessel Co., LTD
(Shandong Zhisheng International Trade Co., LTD.)
1, High standard of products from a good source - from the source, the control of raw materials into the factory inspection
Our company produces all products, in every production process will strictly control the quality of products, from the source, we select raw materials must have production qualification, must issue the original product quality certificate, to ensure that the raw materials selected meet the requirements of gas cylinder production.


One, raw material warehousing inspection
1) The supplier shall provide materials: original product quality certificate;
2) According to the standard requirements of Shandong Hongsheng Raw material Inspection factory, check: appearance, outer diameter, wall thickness and chemical composition of seamless steel pipe.
1. The appearance inspection of seamless steel pipe shall ensure that the product is free from any deformation, scratch, pitting and other defects affecting the product performance;
2. The outer diameter of seamless steel pipe shall be ±1% of the nominal outer diameter (hot rolled) and ±0.75% of the nominal outer diameter (cold rolled) specified in GB/T18248-2021;
3. The wall thickness of seamless steel pipe is hot rolled (-10%~+12.5%) and cold rolled ±10% according to the nominal wall thickness stipulated by GB/T18248;
4. The analysis of metal chemical composition in seamless steel pipe shall be conducted according to the detailed provisions of GB/T18248-2021 and TSG23-2021 on chemical composition.
5. Cylinder quality traceability from the source, each cylinder at the bottom of the imprint transplant number, to ensure the traceability of cylinder products.

The list of ingredients is as follows: List of chemical composition (mass fraction) /%

Mark	C	Si	Mn	P	S	S+P	Cr	Mo	V	Ni	Cu
37Mn	0.34~0.40	0.10~0.30	1.35~1.75	≤0.015	≤0.010	≤0.020	≤0.30	-	-	≤0.30	≤0.20
34CrMo4	0.30~0.37	≤0.40	0.60~0.90	≤0.015	≤0.010	≤0.020	1.9~1.2	0.15~0.3	-	≤0.30	≤0.20

Two, seamless cylinder test center
We have a sound seamless cylinder testing center, each batch of products, after strict testing, can enter the next process of production, to ensure that the products really meet the requirements of production standards, to ensure the delivery of qualified products to customers.
Through the above inspection, we can choose high-quality materials for customers, and strictly control the production process, to ensure that we can deliver qualified products of excellent quality for customers, to avoid the late products due to quality problems such as safety risks.

2, Product quality control
In order to ensure the smooth implementation of the customer's distribution plan, according to the requirements of production, supply and sales, the sales department, quality inspection Department and production and supply Department cooperate with each other to clarify their responsibilities and ensure the successful completion of the project according to the requirements of the product negotiation.
Our production and quality inspection personnel have decades of experience in the gas cylinder industry, and are fully capable of ensuring the smooth implementation of products. Production workers are through strict technical training, can ensure the normal production of qualified products.
1) Products are produced in full accordance with order standards such as ISO9809-3, ISO9809-1, GB/T5099.3.
2) All products have gone through strict inspection procedures, according to the batch of blasting test, as well as water pressure and air tightness test, to ensure that the products meet the quality requirements before leaving the factory.

For each production order, we will hold a production technical meeting before production, and display the order information on the workshop screen at any time to ensure zero error.
3, Communication zero distance - 24 hours technical consulting service support
After our company to ensure that products are sold, when the guest products use problems, help guests to solve the problem as soon as possible, using 7 x24 hours of telephone, online and other way of technical advisory services, each of our sales staff, is thought a sales engineer, for the product performance, technical essentials are very proficient.
In the process of using the product, users can provide timely and effective technical services, timely determine the solution, as soon as possible to restore the product function.
4,Because of trust, can be worth having
Every employee of Shandong Hongsheng, strict control of the process of each link of the product, to ensure that we have good confidence to provide you with perfect service.
We will also provide the relevant cylinder operation precautions and safety precautions from time to time, to ensure that users can really rest assured when using.

Shandong Hongsheng Pressure Vessel Co., Ltd. is willing to be your long-term partner and chief cylinder safety officer, and jointly escort your cylinder safety.

---
