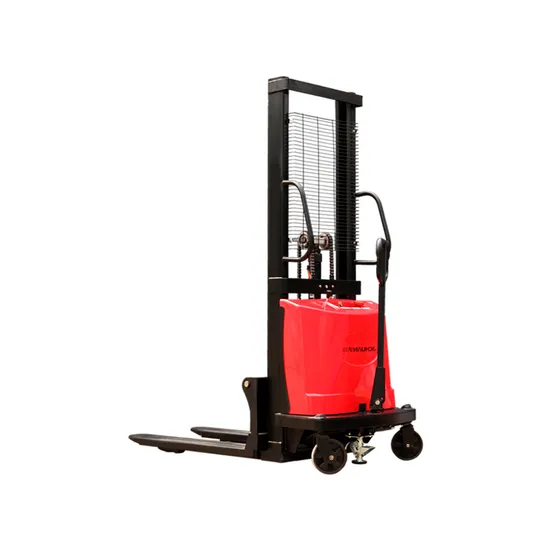

Semi Electric Pallet Reach Forklift Battery Power Straddle Walkie Semi-Electric Stacker 1000kgs, 1500kgs, 2000kgs, Electric Lift Ladder

US$710.00-960.00 1 SET (MOQ)

Basic Info.

Model NO.

DYC

Cab Location

Ground

Type

Stacker

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Hand

Load center

500mm

Lift height

1600~3000mm

Condition

New

Color

Red or Yellow Optional

Transport Package

Bubble Wrap

Trademark

Cheeson

Origin

China

HS Code

8427109000

Production Capacity

2000sets/Month

Product Description

Semi electric pallet stacker 1000KGS, 1500KGS, lift 1.6m 2m,2.5m and 3.5m

Semi-electric Stacker Truck
Model	DYC10-1.6	DYC20-1.6	DYC10-2.0	DYC20-2.0	DYC10-2.5	DYC20-2.5	DYC10-3.0	DYC20-3.0	DYC10-3.5	DYC20-3.5
Lifting Height/mm	1600	1600	2000	2000	2500	2500	3000	3000	3500	3500
Loading Capacity/Kg	1000	2000	1000	2000	1000	2000	1000	2000	1000	2000
Lower Height/mm	85	85	85	85	85	85	85	85	85	85
Fork Length/mm	1000	1100	1000	1100	1000	1100	1000	1100	1000	1100
Outer Width of Fork/mm	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680
Overall Width/mm	800	900	800	900	800	900	800	900	800	900
Overall Length/mm	1690	1790	1690	1790	1690	1790	1690	1790	1690	1790
Lifting Speed/s	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15
Lowering Speed/s	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15
Lifting Motor	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5
Battery	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A
Net Weight	380-460	380-460	380-460	380-460	380-460	380-460	380-460	380-460	380-460	380-460
	4899	5199	5299	5599	5699	5999	6099	6399	6499	6799
