45 Degree Slant Bed CNC Lathe with Full Functions

Product Description

1. This machine is a fully functional slant bed CNC lathes, especially suitable for small and medium-sized plate, short shaft parts of high speed, high precision machining. There are two straight axis X, Z, can do long stroke integral movement by hydraulic driven tailstock . be able to complete full functions by one clamping for: turning, drilling, boring, tapping, reaming, and others.
2. The 45° Slant bed and base is whole casting mold, box type structure, 20 mm wall thickness, optimal layout of reinforcement through the finite element analysis, the high strength cast iron material, resin sand molding, through full secondary time aging and natural aging, so the basis of a machine with high rigidity ,ensure the stability of the machine use for a long time; match automatic forced lubrication, which greatly reduce the frictional resistance feed movement, improve machine precision and life;
3. X, Z axis adopt linear guide way with high precision, high load capacity, high reliability, match automatic forced lubrication, which greatly reduce the frictional resistance feed movement, improve machine precision and life ;the friction coefficient of sliding friction can be reduced to fiftieth of the original, feed speed and positioning accuracy is higher. Tailstock feeding by hydraulic control to realize the long stroke jacking function.
4. High speed and high precision, high rigidity shell type spindle unit, spindle with chromium molybdenum alloy material, spindle bearing adopt NSK specified double row cylindrical roller bearing and P4 level high speed precision angular contact bearings pairs, use NSK high-speed specified grease, resistance to high temperature and high speed. Spindle unit assemble at a constant temperature room, running-in 36 hours in a constant temperature after assemble, through continuous 36 hours test run after install on the machine, make sure that the performance of high speed and high precision and reliability .The spindle hole diameter is 56mm and Max. Dia. through bar is 46mm, make the machine with larger bar through range.
5.Select the famous brand hydraulic or servo tool turret, and the speed of change tool is quick. clamping and loosening of the tool disc. by hydraulic cylinder, motion is smooth, suitable for heavy cutting, has the function of choosing tool nearby ,can install forward or reverse according to the user habit.
6. Outside the machine tool protective adopts full protective structure design, convenient operation, safe and reliable;
7.Operating system on the principle of human body engineering, operation box independent design, easy to operate.

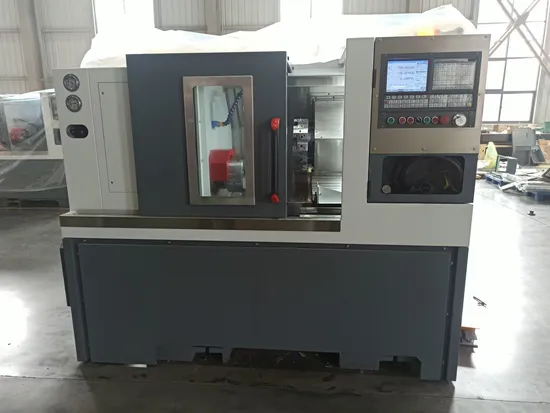

CNC Slant Bed Lathe Machine TCK46D
TCK46D Specification:

Item		Unit	Value	Remark
Max. Swing over bed		mm	460
Max, cutting length		mm	350
Max. Cutting diameter		mm	400	Horizontal 8-station
Max. Swing over carriage		mm	210
Spindle nose			A2-5
Spindle bore		mm	56
Bar through dia.		mm	46
Headstock	Spindle speed	r/min	0~3500
	Speed range		stepless speed
	Main motor power	kW	5.5
Chuck	Chuck dia./type	mm	8² hollow
X axis rapid feed		m/min	30
Z axis rapid feed		m/min	30
X axis travel		mm	210
Z axis travel		mm	350
Tailstock travel		mm	300
Tailstock taper		Morse	MT4
Standard Turret			Horizontal 8-station
Tool size	Turning tools	mm	25×25
	Boring tools	mm	Ф40/Ф32
Is the tool disc selected nearby			Yes
Max. loading	Plate type workpice	kg	200(including chuck)
	Shaft type workpiece	kg	500(including chuck)
Machine weight		kg	2500
Overall szie(L×W×H)		mm	2190×1700×1630

Main configuration of machine tool

No.	Name	Brand	Model/spec.	Number	Remark
1	controller	Siemens	808DA	1set
2	Main motor	Siemens	5.5KW	1
3	X axis ball screw	THK/PMI	φ32×10	1set	Taiwan
4	Z axis ball screw	THK/PMI	φ32×10	1set	Taiwan
5	X axis guideway	THK/PM	35	1set	Taiwan
6	Z axis guideway	THK/PMI	35	1set	Taiwan
7	Tailstock	THK/PMI	Linear	1set	Taiwan
8	Spindle	Wenao	A2-5-4000	1set
10	Ball screw bearing	NSK	25X62X15	1set
11	turret	Yaxing	8-station	1set	China
12	tailstock		hydraulic	1set
13	Electrical components	Schneide+Delixi	Electrical components	1
14	pneumatic components	Airtac	Three point combination	1
15	Automatic Lubrication System	Baoteng		1
16	Hydraulic station	Geyao	1.5KW/45L	1
17	Chuck, cylinder	Beidefu	8″hollow	1set

3.Standard configuration
1)8″ 3-jaw hydraulic chuck and soft jaw ;
2)spindle motor: servo motor 5.5KW(48N.M);
3)Max spindle unit speed 3500rpm'
4)8- position tool turret;
5)Manual pulse generator(hand wheel).
6) Z axis rigid tapping ;
7) Centralized automatic oil lubrication;
8)outlay water coolant and air coolant system;
9)chip by manual;
10)All protective sheet metal shield and guide shield ;
11)leveling pads ;
12) Work light ;
13)warning lamp;
14)hydraulic unit;
15)Siemens 808D system.

---
