Network Switch 16 Ports Support IEEE 802.3X Full-Duplex Flow Control and Backpresure Half-Duplex Flow Control

Product Description

PoE Switch 16 ports support IEEE 802.3x full-duplex flow control and Backpresure half-duplex flow control
Product Description
This is a Gigabit POE switch. There are 16 Gigabit PoE ports, comply with the IEEE 802.3af/at 48V PoE standard, up to 30W for each PoE port. The maximum PoE output power consumption of the whole machine is 300W. It support active PoE standard, automatically detect and identify the PD's power standards, then provide the PoE power by a simple network cables. Plug and play, meeting high-speed network + PoE power supply network environment, suitable for IP monitoring and wireless AP equipment, widely used in hotels, shopping malls, campuses, factories, dormitories, hospitals and other small and medium-sized enterprises to establish cost-effective networks.
Product Parameters
Product Features: 16*10/100/1000Mbps RJ45 ports support PoE+, meeting the PoE power supply needs of security, teleconferencing systems, wireless network coverage and other scenarios; Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 300W, the maximum PoE output power of PoE port is 30W; Automatically identify PoE devices for power supply without damaging non-PoE devices; POE priority is supported, from port 1 to port 16, which is enabled by default; l
Stable and reliable
With the latest high-speed Ethernet chip, self-identifying and intelligent management, ultra-high backplane bandwidth design with extremely fast data processing capabilities, improved the data transmission performance; Seiko metal housing with electrostatic paint, double-flow heat dissipation, strong and durable Support port lightning surge: common mode 4KV(level B); Electrostatic ESD: air 8KV, contact 6KV(level B)
Simple to Operate Zero configuration feature, automatically supplied to adaptive equipment; The PoE power is no restricted by power lines and power socket, saving the labor and wiring costs. Users can easily understand the working status of device through the power indicator light and network port status light.
One-Key 250 Meters PoE power Off: all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive. ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;
Hardware Spec:

Standard	IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE 802.3z (Gigabit Ethernet Fiber Standard), IEEE 802.3af, IEEE 802.3at
Interface	16*10/100/1000Mbps RJ45 PoE ports
	2*10/100/1000Mbps RJ45 uplink ports
	2*Gigabit SFP ports
	1* DIP switch (On/Off mode)
	1 *AC input, 100~240V 50/60Hz
PoE Standard	IEEE802.3af(15.4W) IEEE802.3at(30W) POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6-
PoE Input	52V /3.84A (200W) / 52V /5.76A (300W)
Power	Non POE board power: maximum 10W POE power: maximum 180W/maximum 280W
Network Media	10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Optical Medium	Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Bandwidth	40Gbps
Packet Forwarding Rate	29.76Mpps
Memory cache	3Mbit
MAC address table	8K
Storage and forwarding	Support
Working Environment	Working Temperature: -10ºC ~ 50ºC Storage Temperature: -40ºC ~ 70ºC Working Humidity: 10% ~ 90% RH No-condensing Storage Humidity: 5% ~ 95% RH No-condensing
Size	320*207*44mm
Packing information	Package Dimensions: 370*290*85mm Product N.W: 1.78KG(200W)/1.87KG(300W) Product G.W: 2.28KG(200W)/2.43KG(300W) Carton Dimensions: 445*310*390mm Packing Quantity: 5 PCS Packing Weight: 12.4KG(200W)/13.15KG(300W)
Packing list	Switch, 1 PCS Power cord, 1PCS User manual, 1 PCS
LED Indicator Status
LED Indicator	PWR(Power), 1-20 Green Light(Link&Data), 1-16(Yellow Light), POE Led Key
PWR	On: Powered on Off: Powered off
1-20 Green Light (Link&Data)	On: Link normal Off: Link blocked Flashing: Data transmitting

1-16 (Yellow Light)	On:POE power supply is normal Off:POE not powered
PoE Max POE power light (Green Light)	Off: indicates PoE power usage is less than 90% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% On: indicates that PoE power is used at 95%<P<100%
Mode DIP Switch light	On:Extend on Off:Extend off
PoE Led Key	Dual color light selection: default green (link data), switch yellow light (PoE)
Extend DIP Switch	OFF:common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;

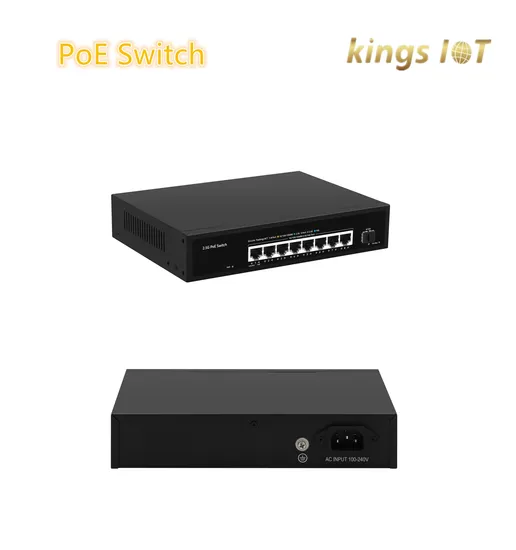

Detailed Photos

Our Advantages 1. OEM & ODM manufacturer with R&D team and factory together. Manufacturer is located in Shenzhen city;2. Produced some products in India and Vietnam already, can support production in other countries;3. Professional engineer and sales teams, 10+ years experience, faster and skilled communication to save time;

After Sales Service 1. Two years warranty as product with branded components, such as Qualcomm/MTK chipset, Winbond flash, Nanya DDR, Skyworks PA...2. Online technical support always.3. On-site technical support;

FAQ 1. MOQ:
If no brand, the MOQ can be 100PCS;
If branded, then MOQ should be 1000PCS;
Can be 500PCS also, but extra OEM fee will be added;
2. Samples:
Samples available before mass production;
But will charge sample fee and shipping fee.
If samples can't pass the testing as Quality default, we can return the sample fee and shipping fee
3. SKD
We can support SKD
4. Long term business
We are not one-time business partner;
Most of our customers are cooperated with 10 years experience;
A supplier with stable and longer-life time product, faster and response communication will save too much for you

---
