Product Details
Product Description
Product Description

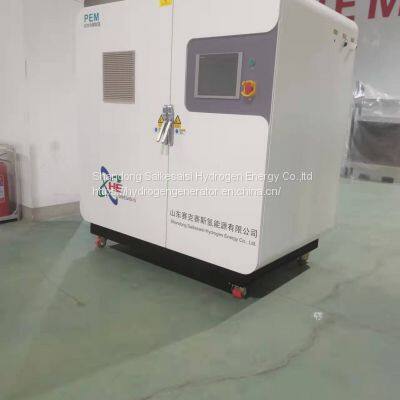

17LPM flow Hydrogen Generator---PEM technology, 99.999% purity
Model: QLS-H1
Technical Characteristics
The series of products, producing highly pure hydrogen by utilizing SPE technology to electrolyze pure water (without adding alkali), are light, highly-effective, energy-saving, and environmental protection. They are advanced technology patented products.
Structural Features
1. Zero polar distance and highly active SPE catalytic electrodes are used.
2. Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.
3. Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, corrosion resistance and bearing deactivation.
4. Complete, mature and credible automatic control system.
Functions and Characteristics
1. Electrolysis of pure water(without adding alkali)to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
2. Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
3. Hydrogen is produced with stable pressure and output, output of hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
4. Power consumption is less, and the electrolysis is efficient.
Applied Area
This kind of products can also be used in lab hydrogenation, supplying hydrogen for metal hydride alloy, flame reduction, reduction air protection, solar power, storing power for wind power generation, etc
Technical Parameters
Type
| QLS-H1
|
Output flow(ml/min)
| 17L/min
|
Output pressure(Mpa)
| 0-3
|
H2 purity(%)
| 99.999
|
Input power(w)
| | Power voltage(v)
| 380 V±15% 50~60Hz
|
Water Requirement
| water electrical resistivity>=10MΩ/cm
|
Contour Dimension(LxWxH mm)
|
|
Weight(kg)
| 1000
|
