Product Details
Product Description
Product Description

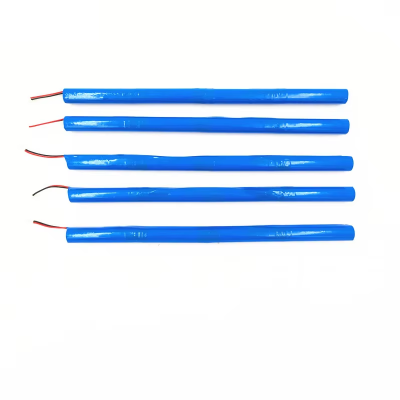

12V 5AH 32650 4s1p long LiFePO4 battery pack for electric curtain:LiFePO4 deep cycle replace lead acid battery Power storage battery sealed 5000 Deep Cycles life 12V 7Ah LiFePO4 Lithium Battery with Built-in BMS for Small UPS, Solar Power, Speaker and Outdoor Camper
| No. | Item | Specification | Remarks |
| 1 | Brand Name | OEM |
|
| 2 | Model No. |
|
|
| 3 | Norminal Capacity | 5Ah | 0.2 C5A discharge |
| 4 | Nominal Voltage | 12.8V |
|
| 5 | Discharge Voltage (Min.) | 7.5V |
|
| 6 | Charging Voltage (Max.) | 14.6V |
|
| 7 | Charging Current (std.) | 0.2 C5A |
|
| 8 | Discharging Current (Max. continue) | 2 C5A |
|
| 9 | Discharging Current (Max. temporary) | 3 C5A |
|
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH |
|
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH |
|
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH |
|
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH |
|
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH |
|
| 13 | Battery Type | LiFePO4 battery 32650 5000mAh |
|
| 14 | Internal Impedance |
|
|
| 15 | Protection Fuctions | Over charge, Over discharge,
Over load, Short Circuit |
|
| 16 | Size | Dia.35mm x Length 300mm |
|
| 17 | Weight | Approx. 1kg with plastic case |
|
| 18 | Cycle Life | 5000 times |
|
| 19 | Warranty | 12 months |
|
Typical Advantage of our lithium battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @70% capacity retain.
4. Large batch production, offering very similar cells for rating.
>>
