Windows Computer Control Alternator Starter Test Bench

Product Description

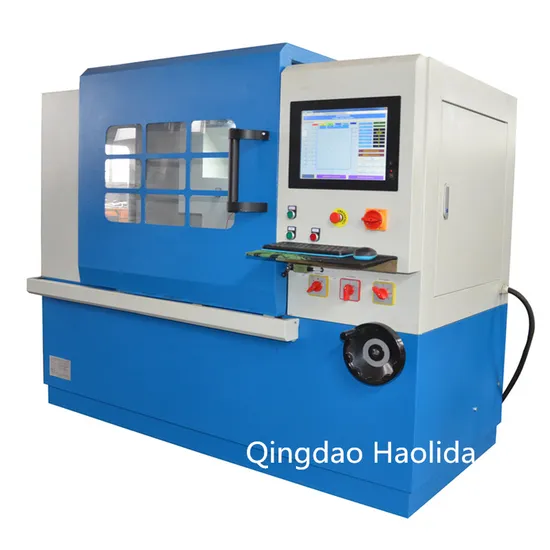

HLD-FQZ-3Z model Windows computer control alternator starter test bench
General introduction:
1.It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
2.Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V, 8000RPM
Test item: Speed, Voltage, Current (Load or no-load)
3.Test Starter: 15KW, 0-2000A, 0-200N.M, 12V or 24V or 48V
Test item: Torque, Voltage, Current (Load or no-load)
4.It is matched with PLC computer to operate, display, save & print test results and curves.
Technical parameter:

Model no	HLD-FQZ-2C
Language	English/Spanish, etc
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50 Hz 3P (other voltage acceptable)
Motor power	7.5KW
Motor speed	0-3600Rpm
Frequency converter power	11KW
Alternator testing:
Maximum power	7.5KW
Maximum current	200A
Maximum voltage	80V
External battery	No
Excitation voltage	12V/24V
Speed range	No load:0-8000Rpmad; Load:0-6000Rpm
Load mode	Electronic module (advance)
Motor drive style	Belt connect
Clamp style	Mounting clamp, fasten or loosen with button control, easy to mount or remove
Starter testing:
Maximum Power	15KW
Maximum current	2000A
Maximum torque	200N.m
Test solenoid excitation voltage	12V/24V
Need external battery	12V/24V/48V
Accessories:
Accessory wires, belt, blank plates for starters, fuses, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery (negotiable)
Delivery time	30 days after receiving downpayment
HS code	90312000.90
Packing sizes	1870*1020*1660mm=3.17CBM

Why Choose us:
1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests

---
