CE Approved Sfsp Water Drop Corn Feed Hammer Mill/Crusher

Product Description

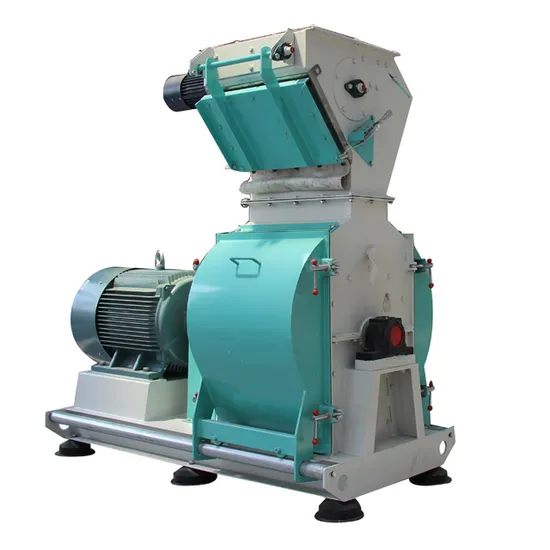

SFSP Water Drop Corn Feed Hammer Mill/Crusher (CE Approved)
Introduction:
1. Reasonable structure, safe, durable and easy operation; Stable with low vibration, high efficiency with low consumption, working continuous for long time.
2. This machine can grind all kinds of materials of pellet feeds, such as corn, sorghum, grain, legumes, and so on.
3. Prevent dust spilling out, keep the working environment clean.
4. Easy and safe operation with the top inlet and quick start full opening operation door, and also make the maintain more expediently.
5. Inside rotors make the smash thoroughly, the pellets more uniform; The materials can be coarse grinded, fine grinded and even to be the powder.
Features:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big off set travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Main data:

Model Item	SFSP63×35	SFSP63×45	SFSP63×55	SFSP63×65	SFSP63×75
capacity(t/h)	0.3-0.5	0.8-1	1.8-2	2.5-3	3.5-4
Power (KW)	22	37	45	55	75
Feeding mode	up	up	up	up	up
Max diameter of input materials	<=Φ50	<=Φ50	<=Φ50	<=Φ50	<=Φ50
Main shaft speed(r/min)	2900
Dimension (mm)	1640x950x1130	1840x950x1130	1980x950x1130	2300x950x1130	2500x950x1130
Weight (kg)	980	1520	1650	1950	2300

Raw Material
SFSP Feed Hammer Mill/Crusher Details:
FAQ
Q1: What's your factory MOQ and best price? A1: No MOQ and 1 set machine order is also welcomed.We usually quote FOB Qingdao price ,but if you want to know the other Price Term, we will try our best to meet with your demands. Q2: This is the first time I use this kind of machine, is it easy to operate? A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/phone /whatsapp/trademanager online service. Q3: How to install? A3: We adjusted machines well before we delivery. When customers receive them, you can work with them directly. Q4:How to ensure the safety? A4: There have the overload and over heat protection, it ensure working people safety.

---
