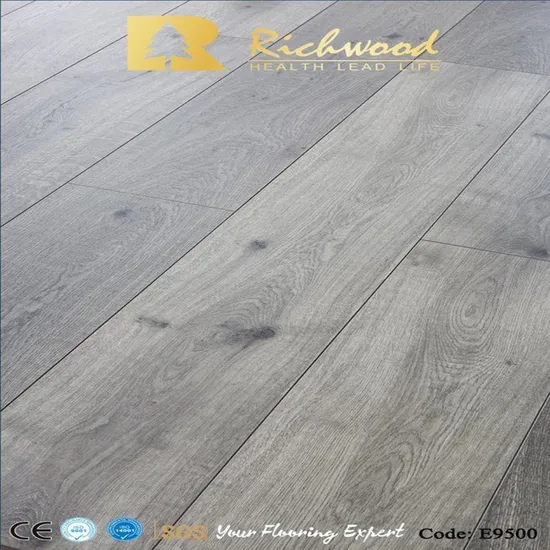

Commercial 8.3mm E1 AC3 Engineered Wood Embossed Hickory Antibacterial Laminated Laminate Flooring

Product Description

Product Description
Product Overview
Embossed -In-Register (EIR) is a manufacturing process that intensifies the depth, texture and authentic look of the flooring by an embossment surface which is totally matching the wooden vein of the decoration paper to indulge you in a feeling of real wood. This amazing technology creates an natural and authentic look, and provides increased traction and improved slip resistance. This EIR collection was created based on this point, it gives an ideal choice for those who want their floors to look as close to real wood as possible and looks fantastic.
Dimension

Length	2280mm		Construction	High Density Fiberboard (HDF)
	1218mm
Width	197mm		Variable Length	Yes
Thickness	7mm	8mm	Variable Width	No
	10mm	11mm
	12mm

More Details

Color Code	E9500	Surface Texture	Embossed in Register(EIR)
Color/Finish Family	Grey	Gloss Level	Low-Gloss(Matte)
Shade	Light	Edge Type	Micro Bevel
Species	Oak	AC Rating	AC3
			AC4
Style	Wood Look	Exclusive	Yes
Plank Vishal	1-Strip	Underpad Attached	Depend on buyers
Pattern Repeat Frequency	every 6planks	Standard	EN13329
			GB/T18102-2007

Installation

Indoor/ Outdoor	Indoor	Installation	Glueless, Click-lock system
Recommanded Usage	Residential	Subfloor Type	Plywood or Concrete
	Commercial
Installation Level	Above/On/Below	Installation Method	Float
Underlayment Required	Yes	For Use on Walls	Yes
Country of Origin	P.R.CHINA	Warranty	100% Quality Guarantee

Flooring Features
Certifications
Quality Guarantee

ISO 9001:2015

CE Certification

ISO 14001:2015

• ISO9001 Quality Control System
• Professional internal product and QC team
• Pre-inspection for all raw materials
• Mid-inspection during production from every process
• Final inspection by CIQ's laboratory or ourselves
• The customer's inspection is also acceptable.
• If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers.
Product Parameters

Technical Data for Richwood laminate flooring
Characteristics	Test Standard	Unit	Standard or Rating
HDF density	GB/T18102-2007	KG/M3	≥850
Class 23	EN13329		general residential use in living rooms and dining rooms
Class 31	EN13329		more varied locations, such as small offices and other light commercial location
Class 32	EN13329		higher traffic commercial areas such as boutiques, busier offices, and restaurant
Abrasion resistance	EN13329,Annex E	R	AC3≥2000
			AC4≥4000
Formaldehyde E1	EN717-1	MG/M3	0.124
Length Tolerance	EN13329, Annex A	MM	≤0.5
Width Tolerance		MM	≤0.2
Thickness Tolerance		MM	≤0.5
Squareness of the element		MM	≤0.2
Straightness of the surface layer		MM/M	≤0.3
Flatness of the element		%	f w, concave ≤ 0,15 % f l, concave ≤ 0,50 %
Openings between elements(mm)	EN13329, Annex B	MM	average ≤ 0.15
			max ≤ 0.20
Height difference between elements(mm)		MM	average ≤ 0.10
			max ≤ 0.15
Dimensional variations after changes in relative humidity	EN13329,Annex C	MM	≤0.9mm
Light fastness	EN ISO105-B02		Blue wool scale ≥6
	EN 20105-A02		Gery scale ≥4
Static indentation	EN433	MM	No visible change
Surface soundness	EN13329,Annex D	N/MM2	≥100
Impact Resistance	EN13329,Annex F	MM	IC2
Resistance to staining	EN438		5, No visible changes
Resistance to cigarette burns	EN438		4
Effect of a furniture leg	EN424		No visible changes
Effect of a castor chair	EN425		No visible changes
Thickness Swelling rate(%)	EN13329,Annex G	%	≤18
Slip resistance	EN14041		DS

Scene Display
Production Process
Production Process
Equipment
1.Impregnated paper
2.Hot pressing
3.Cutting
4.Profiling
5.V bevel painting
6.Wax coating
7.Eva silence pad
8.Packing
Packaging & Shipping
Package
Company Profile
Advantage
Better Quality, Increasing you sales
Our factory is committed to give you the quality you deserve. Using ISO9001 standard& German Technology, we invested a lot in Research & Development. We have a fully equipped lab for quality testing.
• ISO9001 Quality Control System
• Professional internal product and QC team Pre-inspection for all raw materials Mid-inspection during production from every process Final inspection by CIQ's laboratory or ourselves The customer's inspection is also acceptable.
• Third Party Laboratory support: SGS,Intertek...
• Efficient Claim Settlement If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers within 5working days.
Better Service, Saving your cost
• Order Weekly Update
• On-time delivery
• Free sample support
• Free new products samples into container
• Make professional & Special Samples, displays according to customer's requirement
• Develop products (design, size, surface and so on) based on customer's requirement
Better Team, Solving your worries
Positive attitude, professional knowledge, timely communication, responsible action. We are always here for you! • Professional Product Technology Team
• 10 Years Quality Control & Inspection Team
• On-time Communication within 24hours
• Always keep Promise
• Always ready to be your strong backing
Excellent "quality and service" perfectly solve worries for "worldwide customers";
Successful "cooperation and win-win" fully build a strong backing for "business partners"!
Richwood Laminate Flooring,Beyond Your Imagination!

---
