Product Details
Product Description
Product Description

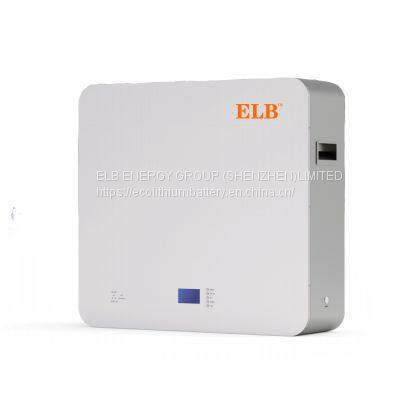

This ELB ES-BOX2 is a 5kwh energy storage battery, built with LiFePO4 lithium chemistry. Which offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Stored Energy | 5120Wh |
| Resistance | | Self Discharge Rate | | Maximum Continous Charge Current | 100A |
| Maximum Continous Discharge Current | 100A |
| Charge Cut-off Voltage | 58.4 V |
| Discharge Cut-off Voltage | 40V |
| Cycle life(25°C) | >6000 times@80%DOD |
| Communication | CAN/RS485/RS232 |
| MECHANICAL SPECIFICATIONS |
| Dimensions (mm) | L495×W490×H200 |
| Weight | 49kg |
| Case Material | Water-proof Stainless steel structure |
| Enclosure protection | IP54 |
| TEMPERATURE SPECIFICATIONS |
| Discharge Temperature | 0 to 55°C |
| Charge Temperature | -10 to 55 °C |
| Storage Temperature | -20 to 60 °C |
| Humidity | 15%~75% |
| OTHERS SPECIFICATIONS |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 15 years |
The Certification that ELB Got:
ELB Battery certification
Check details in ELB certification center.
>>
