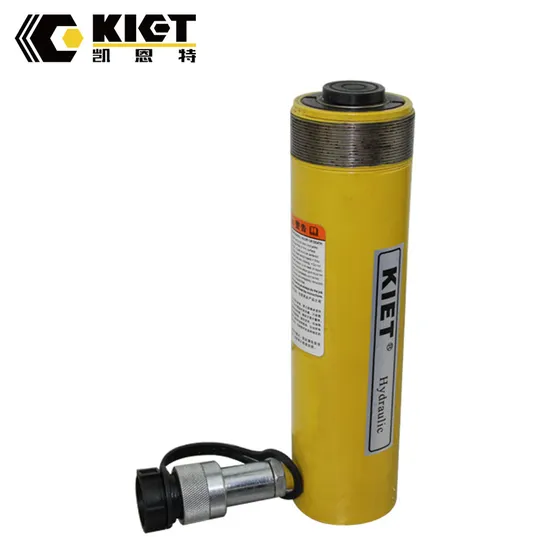

RC-1014 10ton Stroke 356mm Single Acting Hydraulic Cylinder

Product Description

Company Profile

Jiangsu Canete Machinery Manufacturing Co., Ltd. is a national high-tech enterprise and manufacturer of hydraulic devices special for large-scale heavy-duty jacking and lifting field. Integrating system design, product R & D, production, marketing and import & export, KIET provides a full range of high quality hydraulic tools and professional comprehensive solutions for customers.
Relying on advanced scientific technology in Europe and America and gathering elite talents at home and abroad, KIET focuses on solving major engineering problems in the fields of heavy load, precise control, multi-logic actions, multi-point control, etc.
After more than 20 years development, KIET has established a rigorous production and operation system and a perfect quality control system. Through continuous innovations, serialized products and solutions are gradually formed in the fields of multi-point synchronous lifting,pushing,hoisting, translation, tensioning, weighing of asymmetric large components, space posture adjustment, and intelligent walking of large equipment and components. KIET has won praise from domestic and foreign customers for its high-quality products and excellent services. At present, KIET's business has spread to more than 100 countries and regions in the world, covering roads and bridges, construction, petrochemicals, metallurgy, power, mining, ships, offshore engineering field.
Adhering to the core concept of "Ingenuity for manufacturing, service for the world", KIET continues to expand scientific research strength, forge ahead, strive for first-class, and provide customers with safe, reliable and efficient equipment and service.
Product Description
Introduction
Single-acting hydraulic cylinder has the widest range of stroke length and lifting capacity, and is the best choice for maintenance, production, manufacturing, construction and other operations. The neck thread can withstand full load, and the unique dual guide ring technology can easily absorb the partial load, reduce wear, and extend the service life. The outer ring thread, most models with plunger thread and bottom mounting hole, ensures the matching and positioning easier.
Features
1. Maximum working pressure: 700bar.
2. Single-acting design, built-in high-strength return spring make piston retract quickly.
3. Made of high-strength alloy steel material, durable.
4. The coated piston rod is resistant to corrosion and strain.
5. The stop ring prevents the piston from over-stroke, and the top of the piston is equipped with a non-slip saddle as standard.
6. High temperature baking paint makes the surface of the cylinder more resistant to corrosion.
7. Unique dustproof sealing ring design can reduce the internal pollution of the cylinder and prolong the service life.
8. 3/8"-18NPT coupler and dust cap included on all models
Application Industry
Shipyard hull welding lifting
Thermal power plant equipment overhaul lifting.
Steel plant equipment overhaul lifting.
Ancient building maintenance and reinforcement synchronous lifting
Support various types of hydraulic tools for bending, cutting, punching, crimping, etc.
Product Parameters

MODEL	CAPACITY (T)	MAX. WORKING PRESSURE (MPA)	STROKE (MM)	CLOSED HEIGHT (MM)	OUTSIDE DIAMETER (MM)	Oil Capacity (cm³)	WEIGHT (KG)
KET-RC-51	5	70	25	110	38	16	1.0
KET-RC-53			76	165		50	1.5
KET-RC-55			127	215		83	1.9
KET-RC-57			177	273		115	2.4
KET-RC-59			232	323		151	2.8
KET-RC-101	10	70	26	89	57	38	1.8
KET-RC-102			54	121		78	2.3
KET-RC-104			105	171		152	3.3
KET-RC-106			156	247		226	4.4
KET-RC-108			203	298		294	5.4
KET-RC-1010			257	349		373	6.4
KET-RC-1012			304	400		441	6.8
KET-RC-1014			356	450		516	8.2
KET-RC-151	15	70	25	124	69	51	3.3
KET-RC-152			51	149		104	4.1
KET-RC-154			101	200		205	5.0
KET-RC-156			152	271		308	6.8
KET-RC-158			203	322		411	8.2
KET-RC-1510			254	373		516	9.5
KET-RC-1512			305	423		619	10.9
KET-RC-1514			356	474		723	11.8
KET-RC-251	25	70	26	139	85	86	5.9
KET-RC-252			50	165		166	6.4
KET-RC-254			102	215		339	8.2
KET-RC-256			158	273		525	10.0
KET-RC-258			210	323		697	12.2
KET-RC-2510			261	374		867	14.1
KET-RC-2512			311	425		1033	16.3
KET-RC-2514			362	476		1202	17.7
KET-RC-308	30	70	209	387	101	880	18.1
KET-RC-502	50	70	51	176	127	362	15.0
KET-RC-504			101	227		719	19.1
KET-RC-506			159	282		1131	23.1
KET-RC-5013			337	460		2399	37.6
KET-RC-756	75	70	156	285	146	1601	29.5
KET-RC-7513			333	492		3417	59.0
KET-RC-1006	100	70	168	357	177	2239	59.0
KET-RC-10010			260	449		3466	72.6
