Aluminum Window Machine Arbitary Angle Double Head CNC Cutting Machine for Aluminum Curtain Wall Making/Window Door Mahinery / Aluminum CNC Processing Machine

Product Description

Jinan SETH Intelligent Equipment Co.Ltd.
Product Description

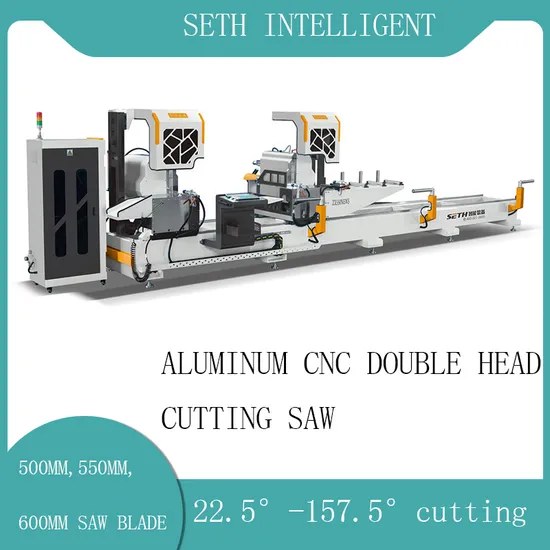

CNC Arbitrary angle double head precision cutting saw for aluminum profile
aluminum Cnc double mitre saw for hot sale
CNC Arbitrary angle double head precision cutting saw for aluminum profile
(1). Mainly used for cutting industrial aluminum profiles, aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
(2) The directly connected blades adopt lever-swing cutting type.The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.

(3) The imported high precision blade makes the cutting surface more smooth.
(4)The cutting angle is auto adjustable through the imported servo motor
between 22.5° to 157.5° Imported control system can accomplish cutting
optimization.

(5)Several profile processing dimensions can be input in one time and
make continuous cutting.

(7)The processing dimension can be directly input, the cutting length can be changed without returning the reference point.

(8)The airproof device under the worktable has wonderful crumbsclearing effect.

(9)The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the
cutting security.
Detailed Photos

Power supply	380V/50Hz
Saw head motor	2×3.0kW 2840r/min
Working pressure	0.6~0.8MPa
Air supply	60L/min
Cutting length	410~4300mm
Cutting width	Max. 210mm
Cutting height	Max. 320mm
Max. cutting slope	45°210×280mm 90°210×320mm
Cutting angle	22.5-157.5°
Feeding speed	0~3m/min
Saw blade specification	Ф600×4.4×Ф30 Z=144 (diamond saw blade 500/550/600mm)
Overall dimension	7800×1500×2040mm
Weight	2600kg

Certifications
Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
Our Advantages
Why choosing SETH?
Using newest technology
professional Technical & Engineering experts
10+ Years Experience
Realiable & Safe machine
Reasonable price
Exhibition

FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL
window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine,
aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
