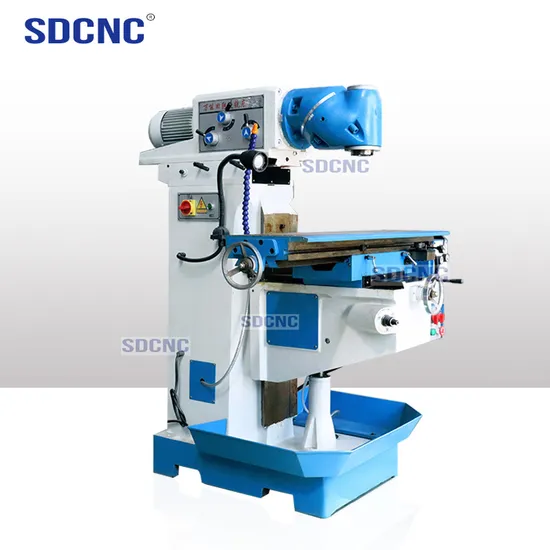

X6226 Universal Milling Machine From China for Metal Processing

Product Description

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer
than the three section head has greatly improved.
7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can
vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding
cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing
equipment. Product Parameters

Specifications	Units	X6226
Table size	mm	1200x260
Table travel	mm	600/280/400
T-slot numbers / width /space	mm	5-14-40
Spindle taper		ISO40
Spindle speed range	rpm	48-1660rpm
Distance between spindle nose and table surface	mm	100-500
Distance between spindle axis and table surface	mm	-
Range of table feed	mm /min	X:48-370 YZ:manual
Milling head swivel range	°	360
Spindle motor power	kw	3
Feed motor power	kw	0.75
Weight	kg	1400
Overall dimension	mm	1660x1500x1750

---
