C Purlin Shape Channel Cold Roll Forming Machine Production Line

Product Description

Product Description

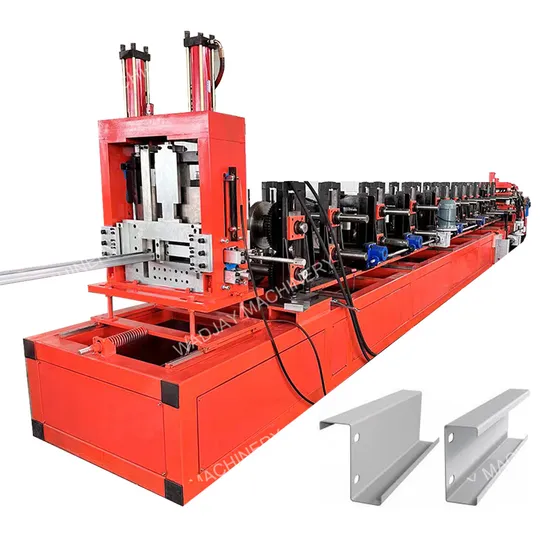

C Z Purlin Roll Forming Machine



WADJAY manufactured C Z Purlin Machine, also called fast change Steel Purlin Making Machine or C & Z Shape Interchangeable Rollig Machine, can be used to produce both C Purlin and Z Purlin with various sizes, in different thickness, andwith punch on web and flange side.
Hydraulic Punching & Universal Cutting system 1.Punching unit: 3 sets + 2 sets 2. Universal cutters for all purlin sizes. 3.cutting length, cutting pieces, and punching are controlled by PLC. As the leading and biggest C Z Purin Roll Forming Machine manufacturer in China,on average we have delivered about 300 sets Purlin Machines each year in the past 5 years, also we are the only factory to supply fully automatic type in China.
Specifications of CZ Forming Machine

Raw Material	Type	Galvanized Sheet, Black Sheet
	Thickness	1.5-3.0mm (1.2-3.2mm)
C Purlin Size	Web x Flange x Lip	80-300/ 30-80/ 10-20
Z Purlin Size	Web x Flange x Lip	120-300/ 30-80/ 10-20
Performance	Speed	Max. 30m/min (by servo motor driven)
	C & Z Interchange	Manually, Semi Automatic
	Size Change	By Press Button, Semi Automatic
Uncoiler	Type	Mechanical or Hydraulic
	Capacity	6 T
Main Machine	Main Roller Station	18
	Main Drive	Hydraulic Motor or Servo Motor
	Transmission Type	Chain
Punching & Cutting	Punching Location	Web + Flange
	Punching Unit	3 Sets + 2 Sets
	Cutter Type	Universal Cutter

Purlin Roll Forming Machine of WJ-CZ-300 Main Components : Uncoiler

1. Type: Mechanical Uncoiler, Hydraulic Uncoiler 2. Load capacity: 6T
Main Machine
1. Roller material: GCr15 with heat treatment, polishing and galvanizing.
2. Main motor: hydraulic motor or servo motor drive
3. CZ Interchange: interchange between C and Z profile controlled by PLC and set through touch panel.
4. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.

Hydraulic Punching & Universal Cutting System
1. Punching unit: 3 sets + 2 sets 2. Universal cutters for all purlin sizes.
3. Cutting length, cutting pieces, and punching are controlled by PLC


Packaging & Shipping

Company Profile










FAQ
Q1: How long is the warranty? A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories. Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order.

---
