Saddle Moving Surface Grinder, Fsg Series Saddle Moving Grinder

Product Description

Product Description
Feature instroduction of saddle moving surface grinder
FSG Series saddle moving grinder, the table size covers 200x500,250x500,300x630,300x1000,400x800,400x1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes corss movement driven by AC motor, work table make reversing movement driven by hydrau, and spindle make elevating movement and is driven by manual(M series), AC motor(R series), or AC servo motor(A series).

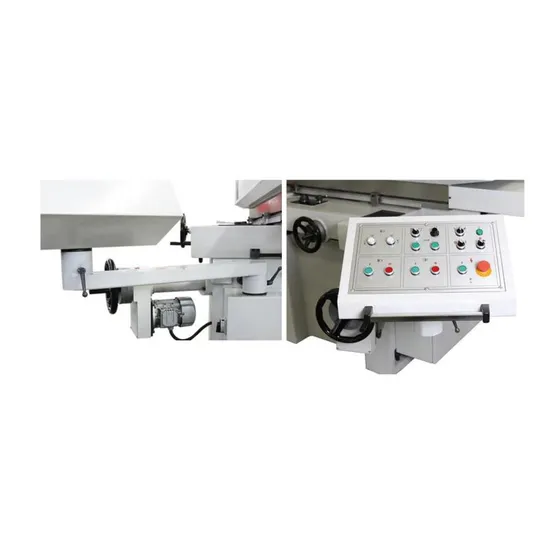

Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency
Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guide way, which make the column safe and beautiful.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
the A series grinder is standard equipped with auto down feed Servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
The work table is driven by imported hydraulic valve unit, realize smoothly motion without shocking
Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy
M Series Manual Surface Grinding Machine
precision grinding Built-in Electro spindle runs in maintenane-free, suport by preload high precision angular ball bearing
The machine bed, table and column are high grade casting piece, which supply strong base for grinding, the slideway is coat with TF wearable material and manual precision scrapped.
Hardened steel guide way and rolling ball (made in Taiwan) structure is adopt on X axis, with smoothly motion, high accuracy and long life.
High precision cross and vertical lead screws are made in Taiwan.

Product Parameters

Specifications

(ITEM) / (MODEL)			M618	M818
	table size W * L	mm	150*450(6"*18")	200*450(8"*18")
	Max. grinding size W* L	mm	160*470	220*470
	Max. distance from table to spindle center	mm	450	450
	Magnetic chuck size (optional equipment)	mm	150*400	200*400
	Stroke of table left and right motion	mm	500	500
	Stroke of table cross motion	mm	185	240
	Feed of elevating handwheel
	Div.	mm	0.005	0.005
	Rev.	mm	1	1
	Grind wheel size	mm	200x13x31.75
	Spindle roating speed	r/min	2850(50hz); 3450(60hz)
	Power of spindle motor	Kw	1.5	1.5
	Machine weight	kg	750	900
	Package size (worktable dismantled)	cm	1350x1110x1950	1400x1110x1950

standard accessories
operating manual ,manual oil pump ,Balancing arbor, Standard grind wheel ,Leveling wedge and screw
working lamp , Coolant tank , Wheel flange and extractor , Wheel dresser stand , Tool box and tools
optional accessories

	Balancing stand		permanent magnetic chuck
	Magnetic separator		Parallel wheel dresser
	Paper filter		2 axis digital readout
	Dust exhaust sine magnetic chuck		Sine vise radius dresser

Detailed Photos

---
