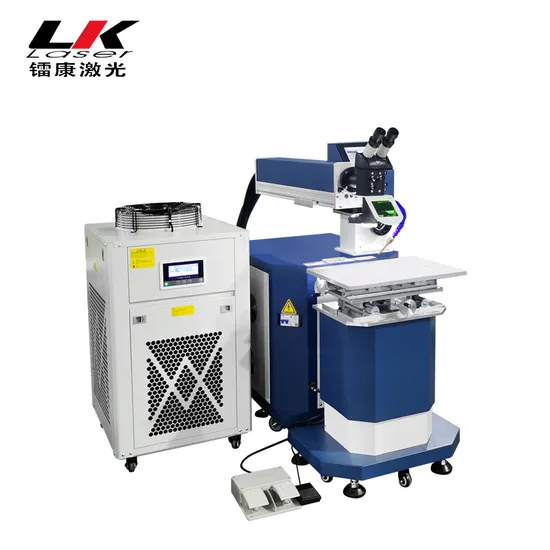

200W 300W YAG Spot Handheld Laser Mould Steel Repair Equipment Laser Welding Machine

Product Description

200W 300W YAG Spot Handheld Laser Mould Steel Repair Equipment Laser Welding Machine
Main Features
1) The ceramic converging cavity of mold steel laser welding machine is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2) Using the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3) The laser head and optics part can be rotated for 360°,upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4) The parameters are controlled by intelligent remote controller, which is simple and convenient.
5) The work bench can be lifted, and moved in three dimensions.
6) The size of light spot can be adjusted.
Detailed Photos
Product Parameters

SPECIFICATIONS FOR MOULD REPAIR LASER WELDING MACHINE
Model	LK-MW200	LK-MW300
Laser output power	200W	300W
Laser type	YAG pulse
Laser wavelength	1064um
Pulse width	0.1ms-20ms
Pulse energy	80J	120J
Pulse frequency	0-50Hz
Size of welding spot	0.2mm-3.0mm
3-axis stroke of work bench	X=300mm, Y=200mm (X,Y can be adjusted manually, Z-axis can be lifted)
Adjusting range of light spot	1.8mm
Max. bearing of work bench	150KG
Repeating precision of work bench	-0.001
Positioning precision of work bench	-0.001
Sighting positioning system	HD-CCD monitor system
Cooling method	Water cooling
Max. output power	200W	300W
Integrity power	5KW
Power supply	AC220VAC/380VAC+-15%/50HZ/25A
Guarantee	1 year
Sample	Sample test available

Application
This handheld YAG spot laser welding equipment can repair mould cracks,small hole, collapse, broken corners, touching edges and sealing edges and other tiny part, especially suitable for mold/mould/die repairing.
Packaging & Shipping
Our Service
We have CE and FDA certificate. Our factory locates in Shenzhen city of China. Welcome to visit us.
1.In the processing of production, our professional technical engineers inspect the processing to esure the quality of products.
2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3.2 years guarantee of the whole machine.
4.Main parts shall be changed free of charge if there is any problem during the warranty period.
5.Lifetime maintenance free of charge.
6.We will provide the consumable parts at an agency price when you need replacement.
7.Machine has been adjusted before delivery.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application.
Q2: When I got this machine, but I don't know how to use it. What should I do?
A: We will send operation video and user manual along with machine.
Q3: What's consumables of laser welding machine? A: It does not have consumable. It's very economical and cost effective.
Q4: What's delivery time? A: Standard one: 7-10 days,
Customised one: to be negotiationed.

---
