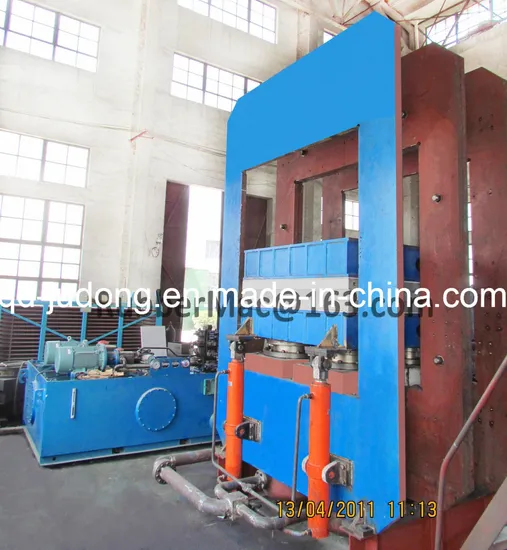

Plate Vulcanizing Press / Hydraulic Press (YADONG)

Product Description

Application:
The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products. The machine is frame structure with below pressing form (upwards). Under the hydraulic pressure, the piston plunger
ascends to make hot plate close for getting pressure, while the piston plunger descends (namely hot plate turning on)
by deadweight of hot plate, platform and piston plunger to drive working fluid to fuel reserve tank to achieve the aim of
descending (namely turning on).
Model Data:
These series products are high efficiency, energy-saving, stable and reliable.

Type	XLB-DQ1200× 1200× 2	XLB-DQ1300× 2000× 1	XLB-Q1200× 2500× 1	XLB-Q1500× 2000× 1	XLB-Q2000× 3000× 1
Total pressure(MN)	315t	560t	750t	1000t	1800t
Plate size(mm)	1200× 1200	1300× 2000	1200× 2500	1500× 2500	2000× 3000
Daylight(mm)	200	400	400	400	400
Layer	2	1	1	1	1
Piston stroke(mm)	400	400	400	400	400
Plate unit area pressure (kg/ cm2)	22	21.5	25	33.5	30
Main motor power(KW)	3	8	9.5	11	26
Overall dimension (L× W× H)(mm)	1685× 1320× 2450	2000× 1860× 2500	2560× 1700× 2780	2810× 1550× 3325	2900× 3200× 2860
Weight (kg)	9500	17000	20000	24000	66000

Press Overview:

---
