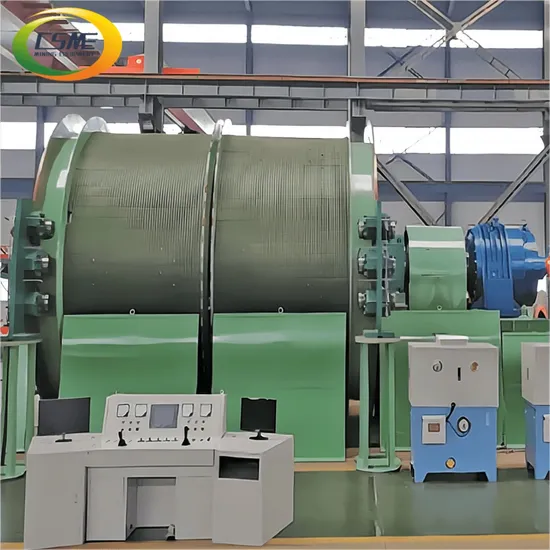

Cost-Effective Electric Mining Lifting Winch for Coal Mine

US$10,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
2JTP(B)-1.2*0.8P
Type
Electric Winch
Driven Type
AC
Speed
Fast
Carrying Capacity
Middle-Level
Tonnage
6.3 T
Reel Number
1-2
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Drum Diameter
1000mm-1600mm
Drum Width
800mm-1200mm
One Layer Lifting Height
135m-216m
Two Layer Lifting Height
275m-441m
Three Layer Lifting Height
418m-610m
Wire Rope Diameter
16 mm-24.5mm
Speed Ratio
20~31.5 I
Motor Power
22kw-185kw
Motor Speed
<= 1000 R/Min
Weight
6200kg-15200kg
Maximum Static Tension
20kN-45kN
Transport Package
Standard Shipping Packing
Specification
4.3*4.0*1.6m
Trademark
CSME
Origin
Hunan, China(Mainland)
HS Code
8425110000
Production Capacity
10 Sets/Month

Product Description

Product Description
Product Parameters
Model Drum Maximum
static
tension		 Maximum
static
tension
difference		 Lifting height/
Transport length		 Steel wire rope Speed
Ratio		 Motor
Power		 Motor
Speed		 Overall Dimensions
(L×W×H)
Weight
No. Diameter Width Center distance
between two
drums		 one
layer		 two
layer		 three
layer		 Diameter Speed
PCS mm KN m mm m/s i KW r/min m Kg
JTP-1.0×0.8
JTP-1.0×0.8P		 1 1000 800 / 20 / 135 275 418 16 1.2
1.6
1.2
1.6		 20
24
31.5		 22
30
37
45		 ≤1000 4.3×4.0×1.6 6200
JTP-1.0×1.0
JTP-1.0×1.0P		 1000 169 345 524 4.3×4.0×1.6 6300
JTP-1.2×1.0
JTP- 1.2×1.0P		 1 1200 1000 30 165 337 512 20 1.2
1.5
2 0
2.6		 20
24
31.5		 45
55
75
90		 5.0×5.0×2.2 8500
JTP-1.2×1.2
JTP-1.2×1.2P		 1200 199 405 615 5.2×5.0×2.2 8700
JTP-1.6×1.2
JTP-1.6×1.2P		 1 1600 1200 45 216 441 670 24.5 2.0
2.5
3 .1
4.1		 20
24
31.5		 110
132
160
220		 6.4×5.4×2.2 13200
JTP-1.6×1.5
JTP-1.6×1.5P		 1500 271 552 838 6.7×5.4×2.2 14000
2JTP-1.2×0.8
2JTP- 1.2×0.8P		 2 1200 800 890 30 20 131 268 408 20 1.2
1.5
2 0
2.6		 20
24
31.5		 37
45
75
75		 6.2×5.0×2.2 10500
2JTP-1.2×1.0
2JTP-1.2×1.0P		 1000 1090 165 337 512 6.6×5.0×2.2 11000
2JTP-1.6×0.9
2JTP-1.6×0.9P		 2 1600 900 990 45 30 160 328 500 24.5 2.0
2.5
3.1
4.1		 20
24
31.5		 90
110
132
185		 7.2×5.4×2.2 14500
2JTP-1.6×1.2
2JTP-1.6×1.2P		 1200 1290 216 441 670 7.8×5.4×2.2 15200

Packaging & Shipping
Certifications & Exhibition
Customer Feedback
Company Profile
1. Who are we?We are based in Hunan, China, start from 2016,sell to South America(40.00%),Africa(20.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Mid East(5.00%),North America(5.00%). There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?Mining Locomotive,Mining Hoist/Winch,Mucking Loader,Rock Loader,Mining Wagon4. Why should you buy from us not from other suppliers?We are a one-stop supplier of mining equipment, and foucs on mining equipment for over 10 years. We have more than 30 production plants with long-term cooperation and quality certification,and also have successful cases in over 20 countries.5. What services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,FCA;Accepted Payment Currency:USD,EUR,HKD,CNY;Accepted Payment Type: T/T,L/C,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Russian
