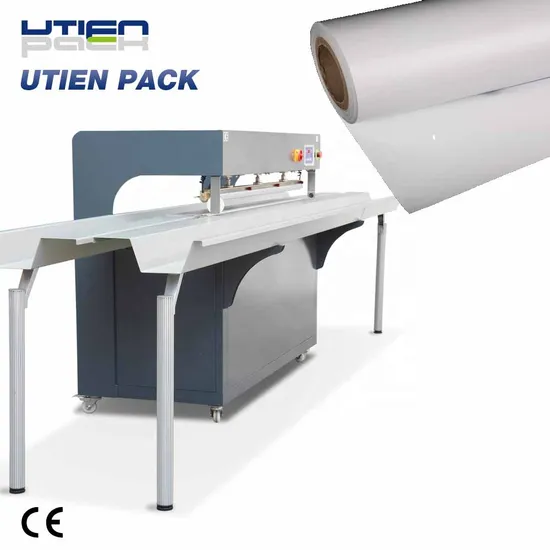

Hem Banner Welder for Sealing PVC Coated Fabric with Extension Table

Product Description

Product Description
Impulse heat sealing/welding machineThe machine requires no warm-up time and seals by applying a pulse of energy to the sealing area, followed immediately by cooling. Impulse sealers only use power when the jaw is lowered.
Usually, It's able to handle a variety of thermoplastic material and poly-coated fabrics, such as banner tarpaulins, screens, tents, awnings, inflatables, truck covers, and more.
Detailed Photos
More application:
Our Advantages
Simple operation
For different materials, the machine software can store 9 cycle settings for the heating and cooling process, enabling consistent high-quality results time and time again.
Safe operation
1.Heat only exists during the sealing time
2. Laser sensor prevent injuries in machine operation
Strong & flexible sealing
Uniform pressure with double sealing bars
Product Parameters

Machine Parameters(FMQP-1200/2)
Dimensions	1375mm*1370mm*1090mm
Weight	360kg
Power	2.5kW
Voultage	220V / 50Hz
Sealing Length	1200mm (Customizable)
Sealing Width	25mm (Customizable)
Maximun Vacuum	≤-0.08MPa
Compress Air Requirement	0.5MPa-0.8MPa
Machine Model	FMQP-1200/2

The parameter in this sheet is for reference only, some of the data may be different with different cases.
After Sales Service
1) The whole machine has 12 months warranty exclude wearable parts such as silicone plate, film, heating elements and so on.
2) Special oversea engineering service is not included in the warranty.
3) Other items or services require can be negotiated.
Q1:How long does it take to deliver the machine after the order?
A1:Usually it will take 45 working days to manufacture the machine and make it ready to deliver.
Q2:What do you need to make a specific offer for my product?
A2:To make a special offer we will need the Sealing length and width and other functions you want to use on this machine. If with other special request please also inform us before we make the project.
Q3:Can you offer oversea service?
A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.
