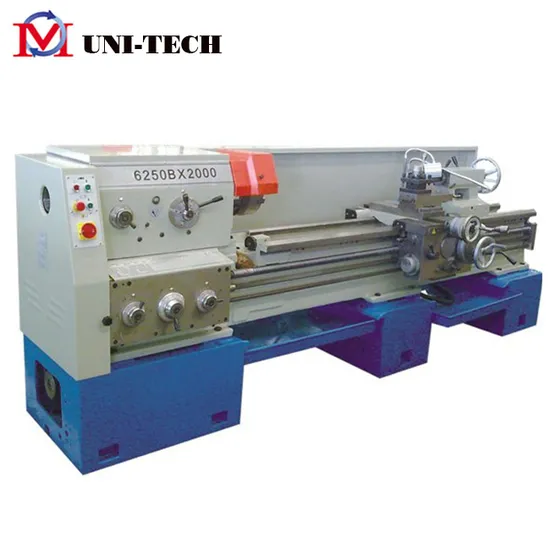

High Speed Precision Lathe Machine for Sale CS6266c/2000

Product Description

FEATURE===CS6266C/2000 China heavy duty metal lathe machine price
1. The manual Gap-bed turning lathe machine can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P; Perform drilling, boring and groove broaching; hand brake and foot brake for users to choose;
3. The manual turning Gap-bed lathe machine can machining all kinds of flat stocks and those in irregular shapes;
4. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system are used on these lathes,
5. These series lathes operate on power supply of different voltages (220V; 380V; 420V) and different frequencies (50Hz/60Hz).
Note:
1. Metric Version or Inch Version.
2. Voltage/ Frequency: 380V, 50Hz, 3 Phase or 220V, 60Hz, 3 Phase.
CS6266C/2000 China heavy duty metal lathe machine price

Item		Unit
			TORNOS 6250/B	TORNOS 6266/B	TORNOS 6280B	TORNOS 6250C	TORNOS 6266C	TORNOS 6280C
Capacity	Max swing over bed	mm	φ500	φ660	φ800	φ500	φ660	φ800
	Max swing in gap	mm	φ710	φ870	φ1000	φ710	φ870	φ1000
	Effective length in gap	mm	240
	Max swing over slide	mm	φ300	φ420	φ560	φ300	φ420	φ560
	Max workpiece length	mm	750/1000/ 1500/2000/3000	1000/1500 /2000/3000	2000/3000	1000/1500/2000/3000		2000/3000
Spindle	Spindle thru-hole	mm	φ82		φ82	φ105
	Spindle nose		CS6140:ISO 702/ No.6 bayonet type; Others: ISO 702/ No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600		24 step	12 step 36-1600		12 step
					8-1400			30-1400
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150		φ90/150	φ75/150		φ90/150
	Taper of center	MT	5
Tool post	Number of station/		4/25X25
	Tool section
Feed	Max X-axis travel	mm	145
	Max Z-axis travel	m/min	320				310	320
	X-axis feed	mm/r	93 sorts 0.028-6.43			65 sorts 0.063-2.52
	Z-axis feed Z-axis feed	mm/r	93 sorts 0.012-2.73			65 sorts 0.027-1.07
	Metric thread	mm	48 sorts 0.5-224			22 sorts 1-14
	Inch thread	t.p.i	48 sorts 72-1/4			25 sorts 28-2
	Module thread	πmm	42 sorts 0.5-112			18 sorts 0.5-7
	DP thread	t.p.i. π	42 sorts 56-1/4			24 sorts 56-4
Others	Coolant pump motor	kW	0.06
	Machine length	mm	2382/2632/3132/3632/4632	2632/3132/3632/4632	3365/4365	2632/3132/3632/ 4632		3365/ 4365
	Machine width	mm	975	1050	1340	975		1340
	Machine height	mm	1230	1350	1490	1270	1450	1490
	Machine weight	kg	2050/2100/ 2300/2500/2900	2400/2600 /2800/3000	3300/3700	2100/2300/ 2500/2900	2200/2400 /2600/3000	3000/3200

CS6266C/2000 China heavy duty metal lathe machine priceStandard accessories
1.3-jaw chuck and 4-jaw chuck
2. Center sleeve and center
3. Tools
4. Oil gun
5. Operation manual
6. Drive plate
7. Steady rest
8. Follow rest
9. Thread chasing dial
10. Foot brake
11. Coolant system
12. Light system
Optional accessories:
1. Chip guard
2. Big steady rest
3. Big follow rest
4. Taper turning attachment
5. Automatic feed stop
6. Quick change tool post
7. Tool cover and chuck cover
8. Protection for leadscrew
9. Digital read out
CS6266C/2000 China heavy duty metal lathe machine price
Our Services:
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ:
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
