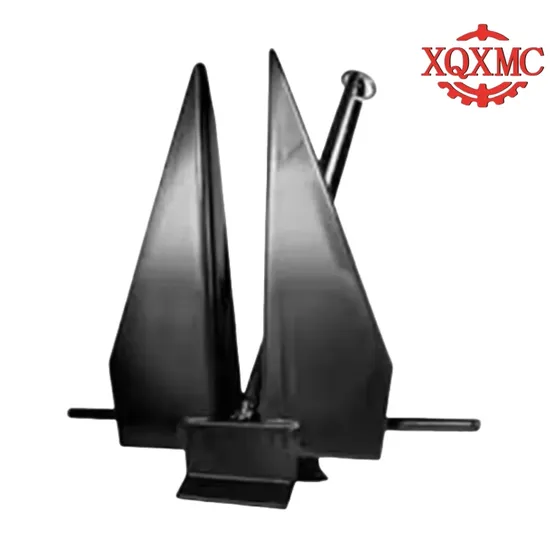

High Quality Hot DIP Galvanizing Marine Accessoriesdanforth Anchor for Boat

Product Description

Product Description

Nominal weight (KG)	Size (mm)
	A	B	C	D	E	F
60	186	408	755	535	985	240
75	200	450	830	590	1080	260
100	216	490	930	640	1180	290
120	220	505	970	670	1230	300
125	234	520	1000	690	1270	310
150	242	550	1060	732	1348	330
200	266	600	1150	810	1490	360
250	294	650	1240	870	1600	390
276	296	660	1250	885	1620	400
300	312	690	1320	925	1700	420
400	342	750	1460	1010	1810	460
500	368	800	1570	1100	2020	490
750	414	910	1800	1260	2300	560
1000	450	980	1980	1380	2540	620
1250	484	1070	2100	1490	2740	670
1500	512	1120	2220	1580	2850	700
2000	500	1130	2440	1730	2910	770
2500	605	1217	2628	1864	3070	830
3000	640	1290	2790	1980	3330	880
4000	700	1420	3070	2170	3590	970
5000	735	1482	3200	2270	3840	1020
6000	800	1620	3500	2480	4100	1100
7000	840	1696	3850	2590	4180	1150
8500	910	1936	3940	2600	4490	1240
10000	940	2000	4160	2900	4640	1280
13600	1046	2120	4590	3250	5378	1440
16000	1105	2240	4845	3435	5680	1520
18000	1150	2270	5000	3570	5680	1580
20000	1190	2350	5175	3695	5880	1635
25000	1280	2530	5570	3982	6330	1760

1. Product Overview
Danfort anchor is an anchor including anchor stem, anchor claw and anchor crown, in which the anchor claw is fixedly installed on the anchor crown. It belongs to the first generation of large grip anchor and is also a rodless rotary claw anchor.
2. Product Features
Large grip weight ratio: Danfort anchor has a large grip weight ratio, which means that it can generate greater grip in the soil, thereby effectively fixing ships or other floating structures.
Large soil-engaging area: Due to its design characteristics, Danfort anchor has a relatively large soil-engaging area, which can be embedded deeper into the soil and provide stronger grip.
Deep and abundant gripping bottom material: Danfort anchor can grip deeper and more bottom material, adapting to various complex seabed environments.
3. Product Application
Mooring buoy: Danfort anchor is often used for mooring buoys, fixing the buoys through its strong gripping force to ensure the stability of the buoys in wind and waves.
Floating dock: In the floating dock project, Danfort anchor also plays an important role. It can firmly fix the floating dock to prevent it from drifting due to wind and waves.
4. Product advantages and disadvantages
Advantages:
Strong stability: Due to its large grip-to-weight ratio and large soil-engaging area, the Danforth anchor shows strong stability when fixing ships or floating structures.
Strong adaptability: It can adapt to various complex seabed environments and meet the needs of different projects.
Disadvantages:
Anchor claws are easy to break: Under certain extreme conditions, the anchor claws of the Danforth anchor may be damaged due to excessive force.
Inconvenient collection: Due to its large size and weight, the Danforth anchor may have certain difficulties in collection and transportation.
5. Market prospects
With the continuous development of marine engineering, water transportation and other fields, the demand for marine anchors is also increasing. As a high-grip anchor with superior performance, the Danforth anchor has broad market prospects. However, in the face of fierce market competition, the production enterprises of the Danforth anchor need to continuously improve product quality and technical level to meet the changing needs of customers.
In summary, the Danforth high-grip anchor is a marine anchor with superior performance and wide application. Although there are certain disadvantages, its advantages still make it highly competitive in the market. In the future, with the continuous advancement of technology and the continuous expansion of the market, Danforth anchors are expected to play a greater role in the fields of water transportation and marine engineering.
