US$40,000.00-110,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Material
Agronomic Products
Certification
CE, ISO9001
Automatic Grade
Semi-Automatic
Material
SUS304 Stainless Steel
Material Thickness
Inner:3-4mm, Exteior:2mm
Dimension(L*W*H)
Depending on Capacity
Weight
Depending on Capacity
Welding
Arc Argon Protection
Electric Elements
up to CE UL Standard
Brewhouse Heating
Steam Jacket , Electric Tub
Fermenter
Double Wallet with Dimple Cooling
Cooling Unit
Chiller with Glycol Tank
Control Unit
Temp. Controller, HMI , PLC or Touching Screen
Technolgy
Offer Auto CAD and 3D Design Drawing
After-Service
Installation and Equipment Commission
Transport Package
Plastic Film, Plywood Case; Container;
Production Capacity
10 Set/Sets Per Month Stainless Steel Brewhouse
Product Description
Product Description

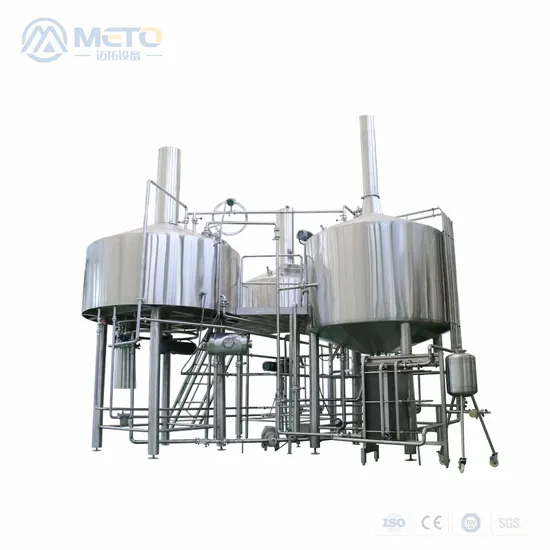

Stainless Steel 304 306 500L 1000L 2000L 3000L 5000L Beer Equipment Plant Complete Micro Brewery System for Sale
| Milling System | Malt Miller,Chian Malt Conveyor |
| Brewing House | Capacity:5000L 4 Vessels Mash tun,Lauter tun,Kettle,Whirlpool |
| Fermenter | Fermentation Tanks 5000L/10000L with Glycol Jacked |
| Water Tanks | Hot Water Tankss,Cold Water Tanks,Glycol Water Tanks,RO Water Tanks |
| Controling System | PLC Controling System,Full Automatic Controling System |
| Cooling System | Refrigeration machine/Refrigerator |
| CIP System | Soda solution tank,Sterilization tank,Pump |
| Heating Method | Steam Jacked |
Other Capacity:100L-1000L/1000L-2000L/2000l-5000L
One set complete beer brewery system as follow
Branch item
| Components
|
1. Milling system
| Malt miller,Grist hopper,Screw conveyer
|
2. Mashing system/Brewhouse
| Mash tun,Lauter tun,Kettle,Whirlpool.3 Vessels or 4 Vessels or 5Vessels
|
Heat exchanger
|
Wort pump
|
Steam boiler
|
Other accessories are available:1. Sanitary pump, pipeline and valves
2.Operating platform 3.Soft pipe 4.Electronic scale
5.Sugar measuring cylinder/Refractometer
6.Yeast dosing tank 7.Venruri tube
|
3.Fermenting system/Fermentation system
| Fermentation tank with glycol jacked
|
Bright Beer tank
|
Other accessories are available:
1. CIP pipe; 2. Ladder ; 3. Hop inlet; 4. Lifting ears; 5.PVRV; 6.Sample valve and butterfly valve; 7. Solenoid valve; 8. Cooing pipe
|
4. Cooling system
| Glycol tank
|
Refrigeration machine/Refrigerator
|
Pump, pipeline and valves
|
5.CIP system
| Soda solution tank,Sterilization tank,Pump and valve
|
6.Filter system
| Kieselguhr filter/Diatomite filter,Membrane filter,Bright beer tank
|
7.Packing system
| Fresh keg/Glass bottle/Pop can packing machine
|
8.Controlling system
| Manual/semi-automatic/PLC control fully automatic control |
Company Profile
Customer case
FAQ
1.Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in this field for 10 years.
2.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
3.Q: How to calculate the daily output? How many fermenters do I need?
A: Usually theequipment models such as 300L and 500L are only 300L, 500L wort for mashing capacity. Beer production is according to your fermentation process requirements and the number of fermenters configured.
4.Q: How you pack the products?
A: Normally as the export standard packaging or as you required.
>>
