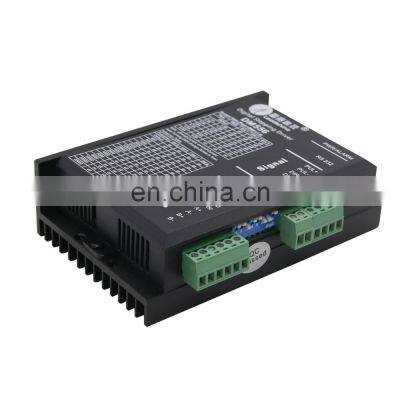

36-60 VDC 2.1A to 5.6A Leadshine DM556 2-phase Digital Stepper Drive for Associated products NEMA23 motorProduct Description
Feature:
- The DM556 is a versatility fully digital stepper drive based on a DSP with advanced control algorithm. The DM556 is the next generation of digital stepper motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives in the markets. Its unique features make the DM556 an ideal solution for applications that require low-speed smoothness.
- Compared to the DM432, broader input voltage and output current ranges make the DM556 able to drive much more motors than the DM432. What’s more, owing to its higher performance DSP, driven motors can achieve much higher speed (above 3000RPM) than that of the DM432, offering servo-like performances.
Features:
- Heatsink integrated and connectors included
- Input: 20 to 50 VDC; Output: 0.5 and 5.6A
- Utility software for tuning drive parameters from a desktop computer
- Super low noise; super low motor heating; extra smooth at low speed
- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
- Multi-stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
- Microstep resolutions programmable, from full-step to 102,400 steps/rev
- Output current programmable, any value between 0.5A and 5.6A
- Pulse input frequency up to 200 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PULSE/DIRECTION and CW/CCW modes
- Over-voltage, over-current, phase-error protections
- Dimensions: 4.65 X 2.97 X 1.34 inches; 9.9 oz
- CE certified
Packaging & Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Company Information
TZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field.
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!
Our Advantages:
- Source only the best consumer goods and ensure the highest quality.
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
