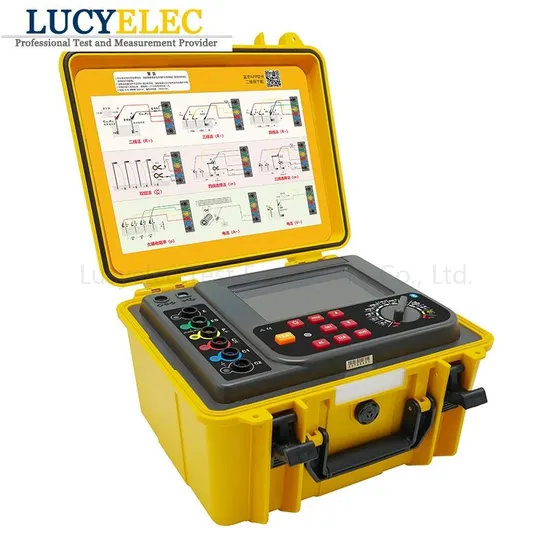

Lucyelec Double Clamp Multifunction Ground Resistance and Soil Resistivity Tester

Product Description

Lucyelec Double Clamp Multifunction Ground Resistance and Soil Resistivity Tester
Product Description ETCR3200C Double Clamp Multi-function Earth Resistance Tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage, grounding line leakage current, AC current and DC resistance. The instrument adopts advanced digital processing technology, with 2-wire method, 3-wire method, 4-wire method, selection method, double clamp method and other measurement methods; Import FFT (Fast Fourier Transform) technology, AFC (Automatic Frequency Control) technology, with unique anti-interference ability and environmental adaptability, high repeated test consistency, ensuring high precision, high stability and high reliability for long-term measurement.The instrument used large caliber current clamp design, can deal with all kinds of test requirements, can measure the grounding resistance value of the large size ground down lead, flexible measuring the grounding resistance value of the single point and grid grouding and all kinds of complex grounding structure, no need to disconnect any parallel connection earth pole when measuring parallel grounding system, greatly improves the convenience of measurement, for the grounding performance test provides a perfect solution.
ETCR3200C Double Clamp Multi-function Earth Resistance Tester is composed of host machine, current clamp(double clamp), test wires, auxiliary ground rod, data software and communication wires and so on. The large LCD display of host machine with white backlight and bar graph indication that can be seen clearly. The tester has storage function, clock function, and automatically stores 2000 groups of test results containing date and time.The tester with Bluetooth communication function supporting Android system. After the installation of APP, can test or read test records in the mobile terminal, bringing a new experience. The tester equip USB interface, and the stored data can be uploaded to the PC through the USB interface. The communication software can realize the functions of reading, consulting, saving, reporting and printing of the historical record data. Widely used in power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment.
ETCR3200C Double Clamp Multi-function Earth Resistance Tester performance feature:
1.1.Unique design of the jack indicator light, accurate indication of the jack position, avoid operation error.
1.2.12 gears function selection knob, various test methods are displayed, making the operation simple and fast.
1.3.The tester has Bluetooth communication function and supports Android system. Users can use mobile terminal to test operation or read test results containing date and time very conveniently.
1.4.The instrument case adopts waterproof protection box, which is strong, safe and durable for anti-collision, anti-fall and waterproof (protection grade IP65), especially suitable for use in outdoor construction sites.
1.5.The meter is equipped with large capacity rechargeable lithium battery pack. And with USB interface to upload data function.
Product Parameters 1. Base Conditions and Working Conditions

Influence Quantity	Base Condition	Working Conditions	Remark
Ambient Temp	23ºC±1ºC	-10ºC~40ºC	----
Ambient Humidity	40%-60%	<80%	----
Working Voltage	7.8V±0.1V	DC 7.8V±0.6V	----
Auxiliary Earth Resistance	<100Ω	<5kΩ
Interference Voltage	Should avoid	<20V
Interference Current	Should avoid	<2A
Electrode Distance when measuring R	a>5d	a>5d
Electrode Distance when measuring ρ	a>20h	a>20h

2. General specification

Function	Measure grounding resistance, soil resistivity; DC resistance, earth voltage, alternating current , leakage current
Power Supply	DC 7.4V 2600mAh rechargeable lithium battery, full of about 8.4V
Backlight	Controllable screen backlight, suitable for dim places
Measuring Method	DC resistance	DC resistance 2-wire method
		DC resistance 4-wire method
	Earth resistance	Earth resistance 2-wire method
		Earth resistance 3-wire method
		Earth resistance 4-wire method
		Earth resistance single clamp 3-wire method (selection method)
		Earth resistance single clamp 4-wire method (selection method)
		Earth resistance doule clamp method
		Soil resistivity(Wenner method)
	Earth current	Current clamp measurement
	Earth voltage	Average rectification
Test Voltage Wave	Sine wave
Test Frequency	128Hz/111Hz/105Hz/94Hz(AFC)
Short-circuit Test Current	AC 250mA max
Open-circuit Test Current	AC 40V max
Electrode Distance Range	1m-100m
Display Mode	4-digital large LCD display, with screen backlight
Measuring Indicator	During measurement, LED flash indicator, LCD countdown display
LCD Frame Dimension	128mmX75mm
LCD display area	124mmX67mm
Instrument Dimension	280mm(L) X 260mm(W) X 160mm(H)
CT Size	223mm X 120mm X 39mm
Test Wire	4 wires: each for red 20m, black 20m, yellow 10m, and green 10m
Simple Test Wire	2 wires: each for red 1.6m and black 1.6m
Auxiliary Grounding Rod	4PCS: Φ10mm X150mm
Current Clamp	2PCS :1 blue-black plug and 1 red-black plug
Clamp Caliber	Φ70mm
Clamp Lead Wire	2m
Measuring Rate	AC current: about 2 times/second
	Earth Voltage: about 2 times/second
	Earth resistance: about 7 seconds/time
Measuring Times	Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)
Line Voltage	Measurement below AC 600V
Communication Interface	Bluetooth module, USB interface, storage data can be uploaded to computer, saved or printed.
Communication Wire	USB communication wire X1pcs, with length 1.5m
Data Hold	Data hold function: "HOLD" symbol display
Data Storage	2000 groups, "MEM" storage indicator, "FULL" symbol flash display storage is full
Data Access	Data read function: "READ" symbol display
Overflow Display	Exceed measuring range overflow function: "OL" symbol display
Low Current Indicator of Current clamp	Measurement with selection method or double clamp, the current signal received by CT2 is lower than 0.5mA,will display" ", and should check the clamping direction of the CT2 current clamp
Interference Test	Automatic identification of interference signals, "NOISE" symbol indication when the interference voltage is higher than 5V
Auxiliary Grounding Test	With auxiliary grounding resistance test function, 0.00KΩ-30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ)
Alarm Function	Measuring value exceeds alarm setting value, will make out "Toot-toot-toot" alarm sound.
Battery Voltage	While battery voltage decreases to around 7.2V±0.1V, will display battery voltage low symbol" ", and reminding to replace the battery
Automatic Shutdown	Automatically shut down after 15 minutes of power on
Working Current	Backlight: 25mA Max(only backlight power consumption)
	Standby:25mA Max(Backlight off after power on)
	Measurement:150mA Max(Backlight shut off)
Weight	Tester: 2290g
	Current Clamp:1100g(2pcs)
	Total weight: 6800g(include all accessories)
Working Temperature & Humidity	-10ºC~40ºC, below 80%RH
Storage temperature & humidity	-20ºC~60ºC, below 70%RH
Protection Level	IP65(close the case)
Overload Protection	Measure earth resistance: between each interfaces of C(H)-E, P(S)-ES,AC 280V/3 seconds
Insulation Resistance	Over 20MΩ(between circuit and outside shell is 500V)
Withstanding Voltage	AC 3700V/rms. (Between circuit and outside shell)
Electromagnetic Features	IEC61326(EMC)
Protection Type	IEC61010-1(CAT 300V, CAT IV 150V, Pollution 2); IEC61010-031; IEC61557-1(Earth resistance); IEC61557-5(Soil resistivity); JJG 366-2004(Grounding resistance meter) JJG 1054-2009(Clamp grounding resistance meter)

3. Intrinsic error and performance indicators under base conditions

Measurement Function	Measurement Range	Accuracy	Resolution
2/3/4-wire method measure earth resistance(R~) DC resistance(R--)	0.000Ω~9.999Ω	±2%rdg±0.05Ω	0.001Ω
	10.0Ω~29.99Ω	±2%rdg±5dgt	0.01Ω
	30.0Ω~299.9Ω	±2%rdg±3dgt	0.1Ω
	300kΩ~2999kΩ	±2%rdg±3dgt	1Ω
	3.00kΩ~300.00kΩ	±4%rdg±3dgt	10Ω
Selection method measure earth resistance(Re)	0.000Ω~9.999Ω	±2%rdg±0.05Ω	0.001Ω
	10.00Ω~29.99Ω	±2%rdg±5dgt	0.01Ω
	30.0Ω~299.9Ω	±2%rdg±3dgt	0.1Ω
	300Ω~3000Ω	±2%rdg±3dgt	1Ω
Double clamp method measure grounding resistance(R~)	0.01Ω~0.99Ω	±10%rdg±5dgt	0.01Ω
	1.0Ω~29.9Ω		0.1Ω
	30Ω~100Ω		1Ω
Soil Resistivity (ρ)	0.00Ωm~99.99Ωm	According to the measurement accuracy (ρ=2πaR a:1 m~100m; π=3.14)	0.01Ωm
	100.0Ωm~999.9Ωm		0.1Ωm
	1000Ωm~9999Ωm		1Ωm
	10.00kΩm~99.99kΩm		10Ωm
	100.0kΩm~999.9kΩm		100Ωm
	1000kΩm~9000kΩm		1kΩm
Earth Interference Voltage (V~) (50Hz/60Hz)	AC 0.0~100V	±2%rdg±3dgt	0.1V
AC Interference current (V~)(50Hz/60Hz)	AC 0.0mA~600.0A	±2%rdg±3dgt	0.01mA

Note: 1.rC max or rPmax: additive error≤±5%rdg±5dgt
(rC max: 4kΩ+100R<50kΩ, rP max: 4kΩ+100R<50kΩ)

Detailed Photos

3.1. USB interface	3.2. Charge interface
3.3. E interface (earth pole)	3.4. ES interface (Auxiliary earth pole)
3.5. P(s) interface (voltage pole)	3.6. C (H) interface (current pole)
3.7. C1 interface (dotted terminal of CT2)	3.8. C2 interface (public interface of CT2)
3.9. Interface indicator	3.10. Test button
3.11. LCD display screen	3.12. Function selection rotary knob
3.13. Function button area	3.14. Stimulant current clamp CT1
3.15. Stimulant current clamp CT1 connecting interface, red banana plug is dotted terminal, black is public terminal	3.16. Receive clamp CT2
3.17. Receive current clamp CT2 connecting interface, blue banana plug is dotted terminal, black is public terminal	3.18. Simple test wires
3.19. Auxiliary grounding rod	3.20. Test wires
