CD6140X1000 Electronic Lathe Suitable for Turning Processing of Threaded Parts Shafts Discs and Other Components with High Precision and Good Quality

US$7,500.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CD6140X1000
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Power Source
Servo Motor
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Model No.
CD6140-1000
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Bed
400mm
Swing Over Carriage
230mm
Center Height
220mm
Max. Workpiece Length
1000mm
Max. Processing Length
950mm
3-Jaw Chuck Diameter
200mm
Packing Size
2650*1340*2000mm
Gross Weight
2160kg
Net Weight
2040kg
Transport Package
Box
Specification
Product size2430/1145/1740 mm
Trademark
SHANSEN CNC
Origin
Tengzhou, Shandong, China
HS Code
8421299090
Production Capacity
50PCS/Years

Product Description


ltems Unit MOdel CD6140-1000
Swing over bed mm 400
Swing over carriage mm 230
Center height mm 220
Max. workpiece length mm 1000
Max. processing length mm 950
3-jaw chuck diameter mm 200
Speed ranges rpm 20-1600
Spindle bore mm 58
Spindle taper mm MT6
Spindle nose C6/D6
Top slide travel mm 150
Cross travel (X axis) mm 260
Longitudinal travel (Zaxis) mm 1000
Number of stations 4
Tool shank size mm 25*25
Quill travel mm 160
Quill diameter mm 75
Quill taper MT5

Detailed Photos

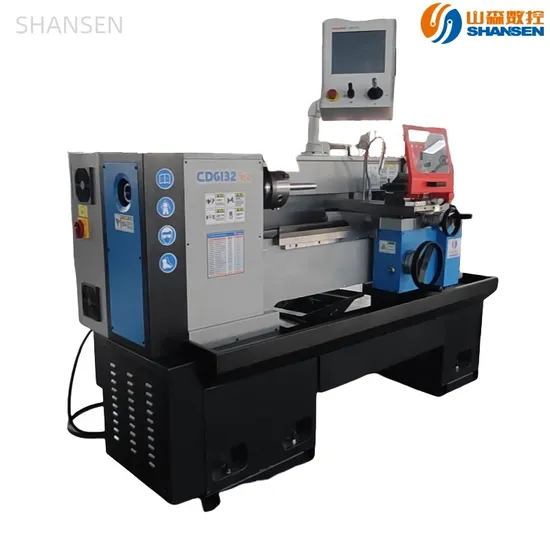

Product Photos

FAQ
1.Q: Are you a factory?
A: yes, we are. and we have 25 years production experience and over 10 years export experience. you can get our good quality and service and competitive price.
2.Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: What is your terms of payment ?
A: Payment<=20000USD, 100% in advance. Payment>=20000USD, 60% T/T in advance ,balance before shippment.

5. Q:What can you buy from us?
A: The company's main products include: CNC system, human-machine interface, Intelligent Circuit Board, oil mist collector, safety door switch, relay module, cable separator module, hand-held pulse generator, cable harness, warning lights, LED work lights, electronic lathe and so on, counting up to more than 20 kinds of products.
Please contact us if you do not find the product you want.
