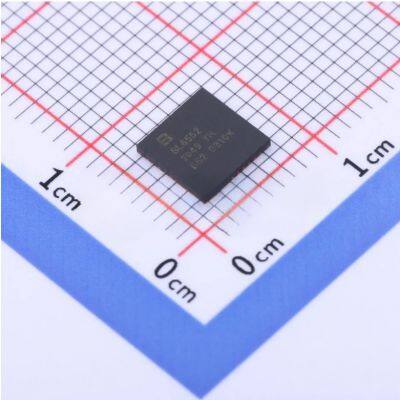

Shanghai Belling Three Phase Power Monitoring and Analysis Chip BL6552

Product Details

Product Description

Product Description
Description:
BL6552 is a 7-channel three-phase power monitoring and analysis chip, which is suitable for three-phase intelligent circuit breaker, three-phase guide rail meter, electrical measuring instrument, power supply monitoring of high-power equipment and other applications, with high cost performance.
Features:
✓High-precision, 8000:1 input dynamic range of active energy measurement nonlinear error <0.1%
✓ High stability, non-linear error of reactive energy measurement within the input dynamic range of 8000:1 <0.1% ✓ Provide neutral current measurement ✓ Provide split-phase and total (fundamental and harmonic) active, reactive, and apparent power (24bit, supporting two calculation methods); and fundamental active and reactive power (24bit)
✓ Provide the effective value of split-phase voltage and current (24bit), and the relative error within the detection range of 3000:1 is less than 0.1%
✓ Provide waveform sampling data of split-phase voltage, current and neutral current (24bit)
✓ Provide total (fundamental and harmonic) active, reactive, and apparent energy (24bit)
✓ Provide total (fundamental and harmonic) active and reactive line cycle energy
✓ Provide total (fundamental and harmonic) positive and negative active energy
✓ Provide the combined and four-quadrant reactive energy
✓ Provides 300 real-time waveforms per week
✓ Provide split-phase and combined-phase power factor
✓ With fast effective value output
✓ Provide voltage and current phase angle measurement
✓ Fast pulse output with active energy and reactive energy
✓ With voltage loss and phase failure detection function
✓ With current loss detection function
✓ With current and voltage peak detection and zero-crossing detection functions
✓ With voltage line frequency detection
✓ Programmable anti-creep threshold setting
✓ Programmable adjustment of pulse output frequency
✓ Programmable active power, reactive power, apparent power error and gain adjustment
✓ Programmable input active phase compensation

---
