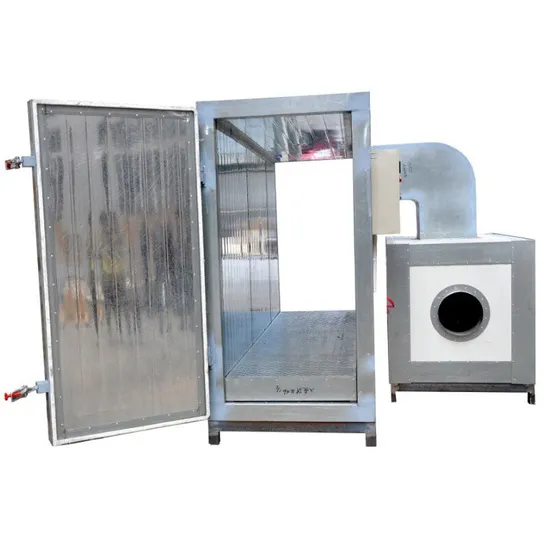

Powder Coating Baking Curing Oven for Metallic Painting System (horno de pintura en polvo)

Product Description

Powder Coating Baking Curing Oven for metallic painting system (horno de pintura en polvo)
Size
Inner dimension 3000(L)*800(W)*1500(H)
Rock wool sandwich panel, density 120kg per sqm, 100mm thick.
Outside is colorful steel; Inside is galvanized steel, anti-flame and heat-insulation.
Entry system
Main door: Two set of door for in and out, with lift lock
Heating system
Italy Riello LPG burner, the max heat ex-changer 100, 000Karl.
One set of heat ex-changer, made by 304 and 316 stainless steel
Need 20-25 minutes to reach the baking temperature180 degrees.
Cabinet (rock wool insulation) for the burner & heat chamber* 1unit
Circulation system
One set of heat resistant fan for circulating the hot air, 1.5kw motor,
Air flow 4012~7419m3/hour
Control system
1unit, including automatic/constant temperature, stop, emergency stop, start,
Oven temperature setting, constant temperature setting, hot air temperature
Setting, over indicator, failure indicator, normal indicator, power indicator,
Pre-work indicator.
Guide rail
1 set of guide rail for pushing the trolley in and out.
Included
All Hardware, Fasteners, and Sealants
Products Details
1.long lifespan: indirect heating like gas/diesel/LPG oven, with heating exchange room .will use longer than electrical powder coating oven2. saving energy and cost: firing gas or diesel cost less of energy3. good curing effect on the metal surface. We use good material and components to achieve perfect warm insulated system: 1) inner wall:Galvanized Steel(thickness=1~1.5mm), 2).interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust4.PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.
Shipping Customer Visiting&Exhibition We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business . Buying Guide
If you are interested in this product ,pls feel free to contact us

---
