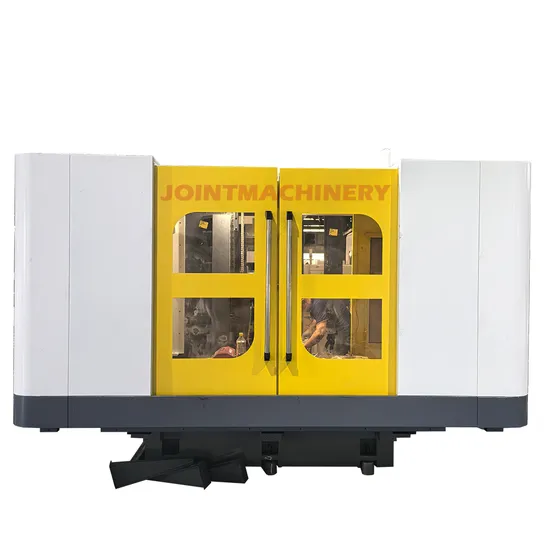

Factory Supply 1100mm 3 Axis CNC Deep Hole Drilling Machine for Automotive Manufacturing

Product Description

Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The precision CNC deep hole drilling machine produced by the company is suitable for various kinds of work pieces for deep hole processing:
√ die &mould industry (water transport hole,center hole,hot runner,guide roller hole,etc.);
√ auto industry(deep hole processingin cylinder head,crankshaft,hydraulic tubing,plunger bushing,etc.);
√ oil pump &lubricating nipple industry (deep hole processing inoil-injection gas,nozzle valve,plunger bushing,and other spare parts);
√ textile machinery industry (mesopore processing of variousspindles);
√ medical equipment industry (axial processing in titanium alloy,stainless steel,etc.);
√ mine &oil machinery (deep hole processingon piston rod,cylinder walls);
√ deep hole processing of rotor,central spindle,valve spindle,unit outer cylinder,condenser tube plate in theindustry of electrical power,steam turbine.
Factory Supply 1100MM 3 Axis CNC Deep Hole Drilling Machine for Automotive Manufacturing

Model	Unit	DH-1100
Inner diameter of drilling	mm	2.5-30
Max depth of drilling	mm	1100
Table size	mm	1200*800
X axis travel	mm	1100
Y axis travel	mm	800
Z axis travel	mm	1100
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	7.5/11
Three axis motor	kw	2.3/3/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	8000
Weight	kg	10000
Dimension	mm	4800*3800*2600

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problem in this guarantee.

---
