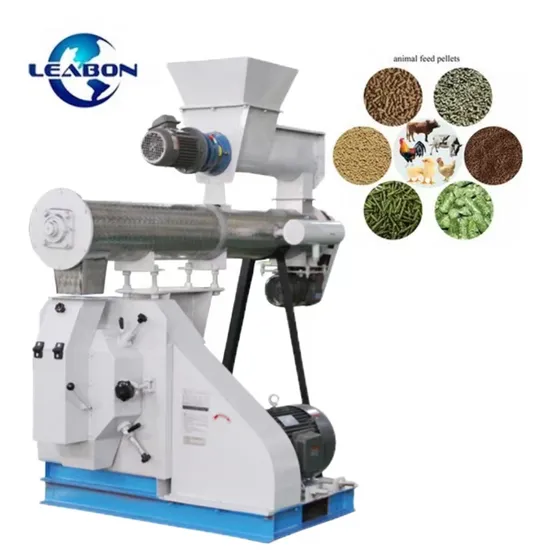

500-1000kg/H Ring Die Roller Mini Pellet Making Machine Poultry Animal Feed Pellet Machine

Product Description

Product Description
The Feed Pellet Machine is formed by squeezing the mixed powdered feed once. It does not need to add water during the granulation process, and does not need to be dried. After natural heating up to 70 degrees, the starch can be gelatinized, the granules are matured deep and the surface is smooth. It has high hardness and long-term storage. It is an ideal equipment for raising rabbits, fish, chicken, pigs, sheep, cattle and small and medium-sized feed processing plants.
Technology data:

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Dimension(mm)
PM-200B	7.5	200-300	230	1000*430*950
PM-230B	11	300-400	320	1140*470*970
PM-260B	15	400-600	380	1200*520*1070
PM-300B	22	600-800	450	1270*520*1070
PM-360B	22	800-900	470	1270*520*1070
PM-400C	30	900-1100	660	1470*600*1150

Other Type
1.CM Series Ring Die Feed Pellet Machine
(1)Drive mechanism adopts high strength belt, with steady running and low noise;
(2)Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
(3)Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use auxiliary equipment.
2.SZLH Series Ring Die Feed Pellet Machine
(1).The transmission gear direct connects with high precision,high transmission rate,stable work, ensure that the energy transfer. Output 15-20% higher than belt transmission.
(2).All stainless steel door,organic outside material and observation window, easy to operate.
(3).The machine drive system is the key position of imported bearing,oil seal,long working life, low noise.
Product Parameters
1.CM Series

Parameter/Model	CM-25A	CM-25B	CM-30B
Output(kg/h)	1000-1200	1000-1500	1500-2000
Power (kw)	22	22	30
Feeding motor(kw)	/	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	250	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kg)	625	710	960

2.SZLH Series

Model	Main power (kw)	Out-put (t/h)	Power of Conditioner (kw)	Power of screw feeder (kw)	In-side of rind die (mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Spare Parts
Feed Pellet Making Line
Raw Material&Final Product
Packaging & Shipping
Company Profile
FAQ

Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc.

Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from.

Q3:What's the certification of your feed pellet machine? ------CE Certification.

Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.

---
