CNC Knee-Type Milling Machine/ Manual Knee-Type Milling Machine, Machine Lathe

Product Description

Product Parameters
CNC knee-type Milling Machine

	Unit	XK5042	XK6042	XK5032	XK6132	XK5030B
Worktable size	mm	420*1800	420*1800	320*1320	320*1320	300*1100
T slot (N*W*D)	mm	3-18*100	3-18*100	3-18*80	3-18*80	3-14*63
Max. load bearing of worktable	kg	750	750	500	500	280
Travel of worktable	mm	1100/400/375	1100/400/375	700/300/280	700/300/280	580/260/90
Spindle hole taper		7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.40
Arbor diameter	mm		Φ50		Φ22 Φ27 Φ32	/
Max. spindle quill travel	mm	85	/	/	/	90
Distance from spindle end to worktable surface	mm	100 ~ 475	100 ~ 475 (spindle center)	100 ~ 380	110 ~ 390 (spindle center)	70 ~ 430
Distance from vertical guideway to spindle center	mm	520	/	380	/	290
Distance from vertical guideway to worktable center	mm	350 ~ 750	350 ~ 750	285 ~ 585	285 ~ 585	160 ~ 420
Distance from spindle center to arm	mm	/	200	/	155	/
Spindle speed steps	steps	18	18	18	18	(inverter)
Spindle speed range	r/min	30 ~ 1500	30 ~ 1500	30 ~ 1500	30 ~ 1500	200 ~ 2500
Main motor power	kw	11	11	7.5	7.5	4
Main motor rotating speed	r/min	960	960	960	960	5000
Feed speed range	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000
	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 2000
	mm/min	5 ~ 1000	5 ~ 1000	5 ~ 1000	5 ~ 1000	5 ~ 800
Rapid feed speed range:Longitudinal	mm/min	4000	4000	4000	4000	3000
Cross	mm/min	3000	3000	3000	3000	3000
Vertical	mm/min	2000	2000	2000	2000	1500
Positioning accuracy	mm	0.025	0.025	0.025	0.025	0.025
Re-positioning accuracy	mm	0.015	0.015	0.015	0.015	0.015
Machine dimension	mm	2500*2600*2300	2500*2600*2047	2245*1780*2050	2245*1780*1920	1500*1470*1800
Machine weight	kg	5100	5100	3300	3100	1800

Manual knee-type Milling Machine

Main specifictions	Unit	X5032B	X5036	X5042	X6036	X6132B	X6142
Worktable Size	mm	320*1320	360*1600	420*1800	360*1600	320*1320	420*1800
T slots (N*W*D)	mm	3-18*80	3-18*80	3-18*90	3-18*80	3-18*80	3-18*90
Max. load bearing of worktable	kg	500	500	800	500	500	800
Longitudinal travel (Manual/Power)	mm	800/780	1020/1000	1200/1180	1020/1000	800/780	1200/1180
Cross travel (Manual/Power)	mm	300/280	300/280	360/350	300/280	300/280	360/350
Vertical travel (Manual/Power)	mm	410/400	410/400	470/450	410/400	410/400	470/450
Distance from spindle center to vertical guide way	mm	380	380	450	155	155	200
Distance from worktable center to vertical guide way	mm	235 ~ 535	235 ~ 535	275 ~ 655	235 ~ 535	235 ~ 535	280 ~ 650
Distance from spindle nose to worktable surface	mm	60 ~ 460	60 ~ 460	40 ~ 510	50 ~ 460	40 ~ 440	40 ~ 500
Spindle hole taper		7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50	7:24 No.50
Spindle speed steps	steps	18	18	18	18	18	18
Spindle speed range	r/min	30 ~ 1500	30 ~ 1500	30 ~ 1500	30 ~ 1500	30 ~ 1500	30 ~ 1500
Feed speed steps	steps	18	18	18	18	18	18
Feed speed range	mm/min	15 ~ 750 15 ~ 750 5.7 ~ 280	15 ~ 750 15 ~ 750 5.7 ~ 280	22 ~ 1100 22 ~ 1100 8.3 ~ 410	15 ~ 750 15 ~ 750 5.7 ~ 280	15 ~ 750 15 ~ 750 5.7 ~ 280	22 ~ 1100 22 ~ 1100 8.3 ~ 410
Rapid feed speed range	mm/min	2250/2250/844	2250/2250/844	2400/2400/900	2250/2250/844	2250/2250/844	2400/2400/900
Main motor power	kw	7.5	7.5	11	7.5	7.5	11
Feed motor power	kw	1.5	1.5	3	1.5	1.5	3
Machine dimension	mm	2307/1707/2096	2307/2067/2096	2522/2265/2432	2327/2067/1720	2327/1792/1720	2522/2262/2047
Machine weight	kg	3200	3370	4450	2850	2850	4200

X5032B X5036 X5042
X6036 X6132B X6142

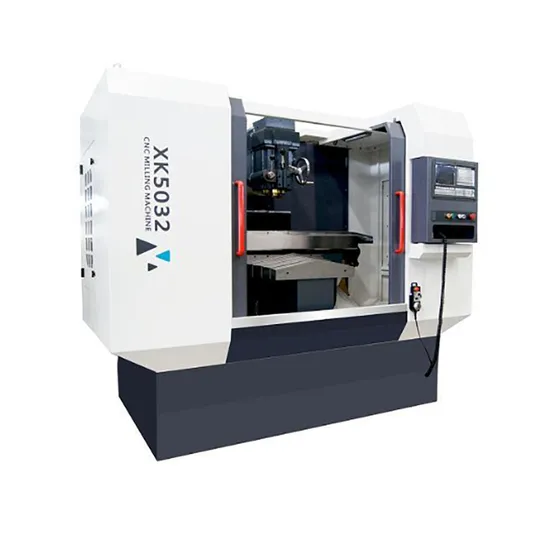

XK5032 XK5042

XK6042 XK6132

---
