Ah802A CATV RF Modulator Single Channel Agile Modulator

Product Description

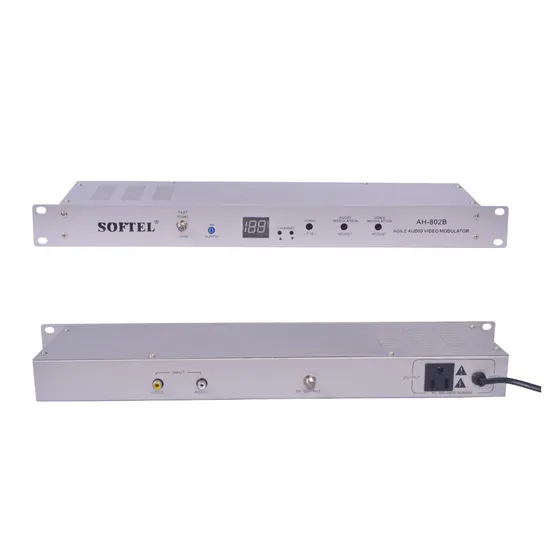

AH802A CATV RF Modulator Single Channel Agile Modulator

Features: 1.IF processed and Double-conversion ensure low outband interfere
2. MCU control for frequency control and accuracy
3.Excellent video and audio linearity for superior picture quality
4.LED Display. User friendly control in front panel
5.Standard 19" housing for standard rack
6.Test point for ease of monitoring
7.Excellent value for your investment dollar
8.PAL,NTSC and SECAM available
Specifications:

RF	Output Frequency	45~870MHz
	Frequency Accuracy	±5KHz
	Output level	113dBmV
	Outband Suppression	≥60dB
	Sideband Suppression	≥60dB
	Output Impedance	75 Ω
	A/V Ratio	-10dB ~ -20dB
Video	Input Level	0.6 ~1.5Vp-p
	Input Impedance	75Ω
	Input Return Loss	30dB min
	K Value	4% max( 2T pulse)
	SNR	50dB
	Delay Response	40nsec
	Flatness	±1dB
	Differential Gain	±4%(Modulation 87.5)
	Differential Phase	±4%(Modulation 87.5)
Aduio	Input Level	-10 ~ 10 dBm
	Input Impedance	10KΩ min
	Flatness	±1dB
	Distortion	1%
	SNR	-60dB
Power Supply	AC Input	110-245V AC

---
