| US$15,000.00-20,000.00 | 1 Piece (MOQ) |

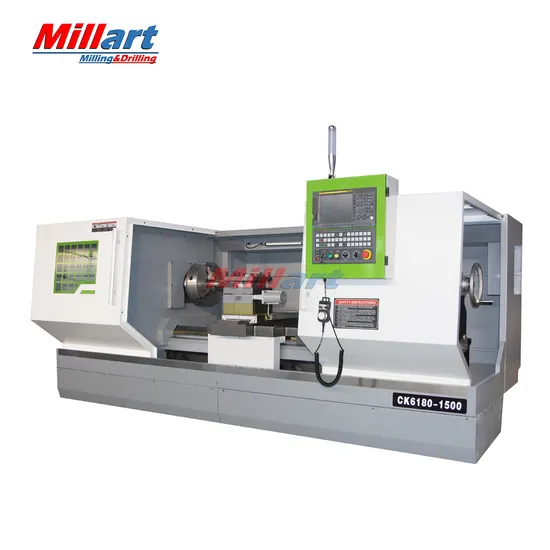

| MODEL | CK6180 | ||
| Capacity | Swing over bed | mm | 800 |
| Swing over cross slide | mm | 520 | |
| Distance between centers | mm | 1500 | |
| Width of bed way | mm | 550 | |
| Spindle | Spindle bore | mm | 104 |
| Spindle bore taper | - | MetricΦ120, MT#5 | |
| Spindle nose type | - | C11 | |
| Spindle speed steps | - | 3 Manual,Stepless | |
| Spindle speed range | rpm | 10-1000 | |
| Chuck size | mm | 315 | |
| Chuck type | - | 3-jaw manual | |
| Turret | Turret type | - | Electric turret 4 position |
| Tool shank size | mm | 32x32 | |
| Carriage | X axis travel | mm | 420 |
| Z axis travel | mm | 1400 | |
| X axis rapid traverse speed | mm/min | 4000 | |
| Z axis rapid traverse speed | mm/min | 4000 | |
| Tailstock | Tailstock quill diameter | mm | 104 |
| Tailstock quill taper | - | MT#5 | |
| Tailstock quill travel | mm | 250 | |
| Motors | Main spindle motor | kW | Servo 11 |
| Coolant pump motor | kW | 0.125 | |
| Accuracy | Positioning accuracy | mm | 0.020 |
| Repositioning accuracy | mm | 0.010 | |
| Dimensions | Width x Height | mm | 2100x1740 |
| Length | mm | 3690 | |
| Weight | Net weight | T | 4.8 |
| Fanuc 0i TF controller |
| Coolant system |
| Lighting system |
| Manual tailstock |
| Electric turret 4 positions |
| Lubrication system |
| Manual 3 jaw chuck |
| Hydraulic 3 jaw chuck |
| Hydraulic tailstock |
| Electric 6 station turre |
| Steady rest |
| Follow rest |
| Live center |
