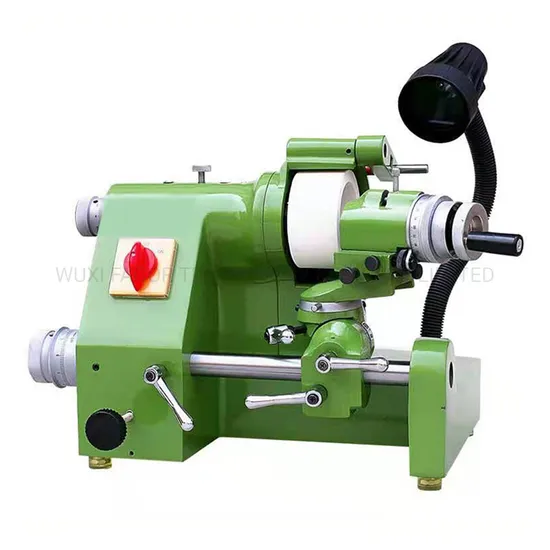

Original Manufactured Universal Tool U2 Type Universal Cutter Grinder

Product Description

MODEL		U2/U3	5C
Wheel	Diameter	Φ100mm	Φ100mm
	Hole diameter	Φ20mm	Φ20mm
Spindle speed		5200rpm	5200rpm
Max.clamping diameter		Φ3~16mm	Φ3~28mm
Longitudinal traver of index head carrier		140mm	140mm
Longitudinal adjustment travel of index head carrler		18mm	18mm
Spindle and wheel longltudinal adjustment travel		6mm	6mm
Taper angle range		0~180°	0~180°
Negative taper angle range		0~26°	0~26°
Relief angle range		0~44°	0~44°
Motor	Power	0.37kw	0.37kw
	Speed	2810rpm	2810rpm
	Voltage Three-Phase	380V	380V
	Voltage Single-Phase	220V	220V
	Frequency	50Hz/60Hz	50Hz/60Hz
Gross weight		45Kg	45Kg
Packing dimensions		536x424x415mm	536x424x415mm
Standard Accessories	Tools	1set	1set
	Collet	5pcs	8pcs
	Grinding wheel	1pcs	1pcs

FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.

---
