Laboao Laboratory Chemical Rotary Evaporator with Auto Lifting for Distillation

Product Description

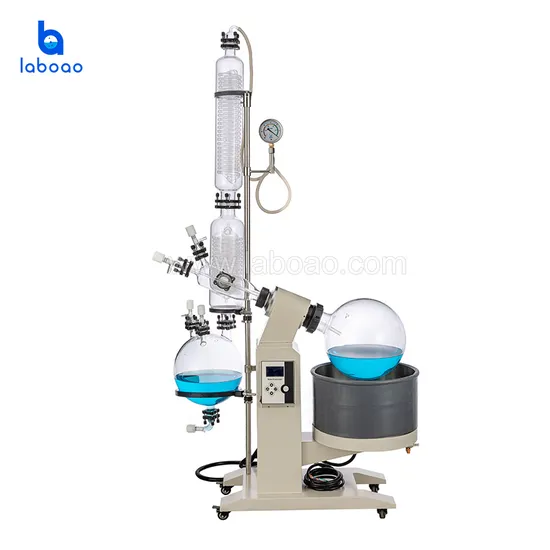

Laboao Laboratory Chemical Rotary Evaporator with Auto Lifting for Distillation
Product Description A rotary evaporator, also known as rotavap or rotovap, is an essential device in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It operates through step-less speed control, allowing the glass rotating bottle to rotate at a constant speed. This rotation creates a large area of uniform film of the material on the bottle wall. The intelligent constant temperature water bath provides uniform heating to the rotating bottle under vacuum conditions, facilitating high-speed evaporation. Additionally, the efficient glass condenser ensures effective cooling, with solvent recovery taking place in the collection bottle.

Model	LRE-10
Voltage	220V/50HZ/60HZ
Rotary motor	60W
Lifting motor	40W
Heating power	4.5KW
Vacuum degree	0.098Mpa
Rotary flask	10L
	Φ280mm/Φ95mm
	Flange mouth
Collection flask	5L
	Φ230mm/Φ50mm
	Flange mouth
Rotary speed	0-120rpm/min

Our Advantages
1. Premium Materials and Construction: The main body features a combination of stainless steel and aluminum alloy, ensuring a durable and well-structured design that withstands stress and ensures longevity.
2. High-Quality Glass Components: All glass parts are constructed from high borosilicate glass (GG-17), renowned for its high-temperature resistance and corrosion-resistant properties, enhancing the durability and reliability of the device.
3. Efficient Sealing System: Utilizes an imported fluorine rubber combination seal system, offering corrosion resistance and a long service life, while maintaining high vacuum levels for optimal performance.
4. Advanced Condensation System: Equipped with a vertical three-tier serpentine coil condenser, featuring dual condensers for enhanced cooling efficiency and ensuring a high recovery rate during solvent evaporation.
5. User-Friendly Features: Incorporates various user-friendly features such as continuous feeding capability, convenient discharge mechanism for collected materials, and an LCD full-screen display for monitoring temperature and speed.

Company Profile
FAQ
Q: What materials are used in the construction of this rotary evaporator?
A: The main body of the rotary evaporator is constructed using a combination of stainless steel and aluminum alloy, ensuring durability and structural integrity. Additionally, high borosilicate glass (GG-17) is used for all glass components, providing high-temperature resistance and corrosion resistance.
Q: How efficient is the sealing system of this rotary evaporator?
A: The sealing system utilizes an imported fluorine rubber combination seal, which offers excellent corrosion resistance and ensures a long service life. This sealing system maintains a high vacuum level, essential for optimal performance during solvent evaporation processes.
Q: Can you provide details about the condensation system of this rotary evaporator?
A: Certainly, this rotary evaporator features a vertical three-tier serpentine coil condenser with dual condensers. This advanced condensation system ensures efficient cooling, facilitating faster solvent recovery and improving overall productivity in laboratory applications.
Q: What user-friendly features does this rotary evaporator offer?
A: The rotary evaporator is equipped with various user-friendly features, including continuous feeding capability, convenient discharge mechanisms for collected materials, and an LCD full-screen display for monitoring temperature and speed. These features enhance operational efficiency and ease of use for the operator.
Q: Is there any safety feature incorporated into this rotary evaporator?
A: Yes, the rotary evaporator includes several safety features, such as over-temperature safety protection and an anti-dry function. The over-temperature safety protection automatically turns off the power if the actual temperature exceeds the set temperature by 5°C, while the anti-dry function shuts off the power if the water level in the heating pot falls below the heating pipe, preventing damage to the equipment.

---
