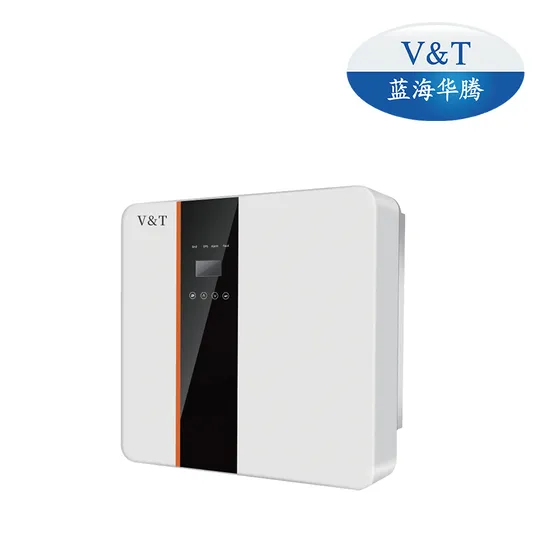

5kw Residential Single-Phase Hybrid Solar Inverter

Product Description

Product Features PV&Storage System
Integrated PV and energy storage,support for a variety of batteries,integrated EMS Smart energy management system
Wide PV input voltage range 125V to 500V
Safe&Reliable
IP65 protection,all-aluminum design,built-in lightning protection,high precision leakage protection
Passed CE, IEC and grid connection test certification in Europe, South Africa, Germany and other countries
Friendly&Flexible
Supporting multiple parallel connections, power and capacity can be expanded
Support on/off-grid automatic switching function to ensure uninterrupted power when important
loads are off-grid
Smart&Simple
Support intelligent EMS management function
Support flexible access of diesel generator

Product Description Input (PV)

Model	VTE3K-D1 VTE3.6K-D1	VTE4K-D1 VTE4.6K-D1	VTE5K-D1 VTE6K-D1
Max. input power(KW)	4.6KW	6KW	7KW
Max. DC voltage(V)	550V
MPPT voltage range(V)	125~550V
Max.input current of single MPPT(A)	14A
MPPT tracker/strings	2/1

AC output

Rated output power(KVA)	3KVA	3.68KV A	4KVA	4.6KV A	5KVA	6KVA
Max. output current(A)	13A	16A	17.4A	20A	21A	26A
Grid voltage/range(V)	230/176~270V
Frequency (HZ)	50/60
PF	0.8lagging-0.8leading
THDI	<3%
AC output topology	L+N+PE

Battery

Battery voltage range(V)	40~58V
Max. charging voltage(V)	58V
Max. charge/discharge current(A)	95A/62.2A	95A/75A	95A/83.3A		95A/95.8A	95A/104.2A		95A/110A
Battery type	Lithium /Lead-acid
Communication interface	CAN/RS485
EPS output
Rated power (KVA)	3KVA	3.68KV A		4KVA	4.6KV A		5KVA	6KVA

Rated output voltage(V) 230Vac

Rated output current(A)	13A	16A	17.4A	20A	21.7A	26A
Rated frequency (HZ)	50/60HZ
Automatic switching time (MS)	<20ms
THDU	<2%
Overload capacity	110%,30S/120%,10S/150%,0.02S

General data

Battery charge/discharge efficiency 95%
DC Max. efficiency	97.6%
Europe efficiency	97.7%
MPPT efficiency	99.9%
Ingress protection	IP65
Noise emission (DB)	<35DB
Operation temperature	-25~+60ºC
Cooling	Natural
Relative humidity	0~95%(non-condensing)
Altitude	2,000m(>2,000De rating)
Dimensions W*D*H (MM)	550/200/515mm
Weight (KG)	25KG
Self-consumption(W)	<3W
Display and communication
Display	LCD
Interface:RS485/WiFi/4G/ CAN/DRM	yes/opt/opt/yes/yes
Safety standard	IEC/EN62109-1/-2, IEC/EN62477-1
EMC	IEC/EN 61000-6-1, IEC/EN61000-6-3
On-grid	south Africa N RS097-2-1:2017, UK G98, G99
