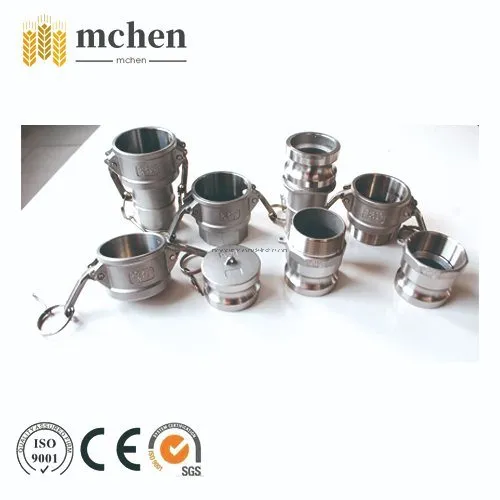

Wholesale Factory Cam&Grooved/Stainless Steel/Aluminum/Brass/PP/Nylon/DIN/Autolock/Self-Locking Pipe Flexible Fitting Connector Quick Camlock Coupling

Product Description

Product Parameters
Customized Camlock Coupling
Camlocks are often referred to as Cam and Groove Couplings.This is because they are engineeres with grooves that allow the vari- ous styles to fit together creating a tight seal.Their simple structure and easy operation make them very popular.Camlocks are connected by simply opening the coupler arms and inserting the adaptor into the coupler.As the arms are pushed down to the sides,the two connectors are forced tightly together creating the bonded seal on an internal gasket. Camlocks come in a variety kf materials:stainless steel,aluminum,brass,polypropylene,nylon.
Standard
1.MIL A-A-59326 Cam&Groove couplings are made in compliance with A-A-59326(old version called MIL-C-27487)specification.
2.EN14420-7(DIN2828) The European standard EN 14420-7:2004replaces DIN 2828,witch was applied to cam&groove couplings maunfactured to A-A-59326A.A flat thread seal has been added to the female threaded parts,and a smooth hose shank has been added for assembly with DIN 2817 safety clamps.
Size
Stainless steel:1/2" to 6"
Aluminum:1/2" to 6"
Brass:1/2" to 6"
PP:1/2" to 4"
Nylon:1/2" to 4"
Material
1.Stainless steel AlSI316/AISI304 by investment casting
2.Aluminium by gravity casting
3.Brass CW614N by forging
4.Polypropylene
5.Nylon
body:
stainless steel 304 316
Features
1.Handles are made of stainless steel AISI 304 as a standard.
2.Camlock are capable of transporting liquids,solids and gases,except liquid gas and steam.
3.Coupling with multi-serrated hose shank & collar are available on customer's request.
Gaskets Material:
NBR,EPDM,Silicon
Thread:
NPT, BSP(female BSPP & male BSPT) ,DIN2999
Specification:
MIL-C27487
Test pressure:
1/2" 150PSI(10.5bar)
3/4"-2" 250PSI(17.6bar)
2-1/2" 225PSI(15.8bar)
3" 200PSI(14.8bar)
3"-4" 200PSI(14.8bar)
4"-6" 100PSI(7.4bar)
6" 150PSI(10.5bar)
Application:
oil,petroleum,chemical,water,gas
Detailed Photos
Company Profile
MCHEN MACHINE PARTS Co., Ltd Has several years experience in producing stainless steel/carbon steel/alloy steel products/rubber products. We have always adhered to the business policy of "Quality for Survival, Product for Development, Credibility for Cooperation and Service for Customers". We are pleased to find new partners and hope to establish longterm business relationships with you based on mutual benefitsOur products have been exported to many countries and regions in Europe, North America, South America, Middle East and AsiaCamlocks are often referred to as Cam and Groove Couplings. This is because they are engineeres with grooves that allow the vari. Ous styles to fit together creating a tight seal. Their simple structure and easy operation make them very popular. Camlocks are con. Nected by simply opening the coupler arms and inserting the adaptor into the coupler. As the arms are pushed down to the sides, the two connectors are forced tightly together creating the bonded seal on an internal gasket.Camlocks come in a variety kf materials: Stainless steel. Aluminum. Brass. Polvpropylene. Nvlon.
Packaging & Shipping
Main Products
FAQ
1. Are you a factory or a trading company?
We are both, we have our own factory and the trading company based on our factory.
2. Can the products print logo?
Yes, we do OEM& ODM orders.
3.How about the samples?
Samples are free and express charge is paid by the buyer.
4. How much about the mold?
Mold is free for you once details are confirmed
5. How about the payment term?
T/T. 30% advanced payment,70% balance before the shipment.

---
