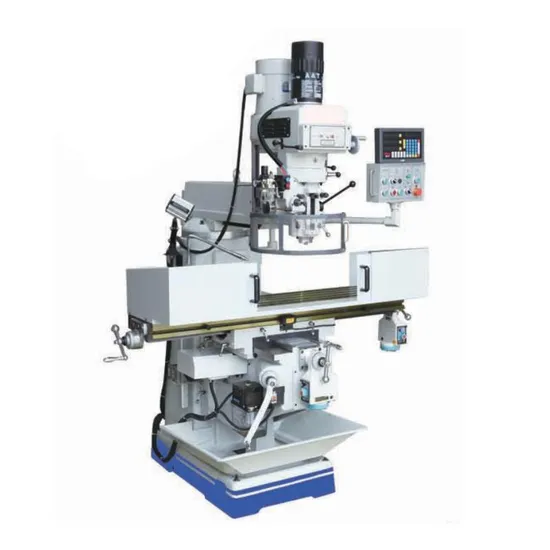

Knee Type CNC Milling Machine with Box Way High Precision Automatic Machining

Product Description

Product Description

Product Parameters

ltem		UNIT	X6330	X6330A
Table size		mm	305×1370(12×54") 305×1500(12×58")
T slot size		mm	3×16
X axis travel		mm	870 / 1000
Y axis travel		mm	360
Zaxis travel		mm	380
Ram cross travel		mm	500
Distance from spindle nose to table		mm	0~350
Spindle hole taper			NT40
Quill travel		mm	127
Spindle speed		r/min	Standard 16 shift: 65-4500(50HZ)80-5440(60HZ) Optional Variable speed:65-3750
Auto quill feed		mm/rev	0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		HP	5(3.75KW)
Milling head swivel			±90°
Milling head tilting			±45°	FIX
Dimension of package	1 miller/pallet	mm	1566×1650×2080
	2 miller/pallet	mm	1720×1800×2175
G.W/set		kg	1650
