2025 Bcmc Stone Machinery Hlmw-100/150 High Output Multi Super Thin 0.5mm Diamond Wire Saw Machine for Marble Block Cutting

Product Description

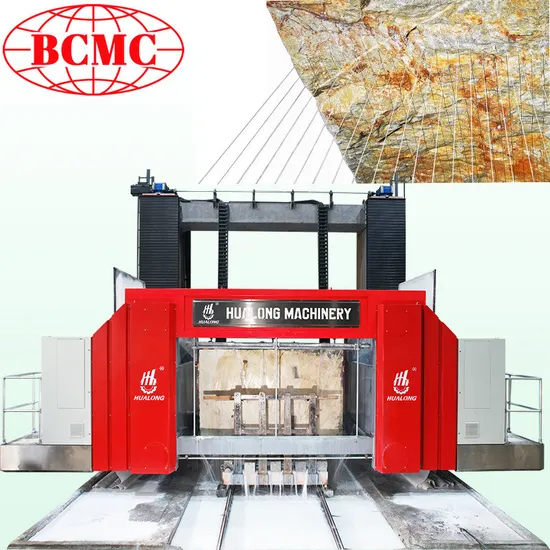

Super Thin Multi Wire Saw Machine
HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows: Main Features:
1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones
2) Emission Reduction of Stone Powder: over 90%
3) Noise reduction - No vibration, reduce noise over 40 dB
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%
6) Space saving - reduce equipment footprint by more than 30%
Wire roller

30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting
Console
Visual human-computer interactive
operating system, clear at a glance, easy to use.
Electric Control Cabinet
INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable performance
Super Fine Multi Wire Saw Machine
* Output: 90 pcs/m for 1.08cm thick slabs * Rate of Output: 98.2%
* Emission Reduction of Stone Powder: 90%
* More smooth surface cutted

Technichal Data for HLMW-100/150
Diameter of diamond wire	mm	0.3 - 0.8
Max. volume of wire stored	km	30 / 50
Operating line speed	m/s	25 - 40
Thickness of slabs cutted	mm	5 - 30
Max. number of cutting pieces	piece	100 / 150
Max. processable size of block	mm	3500x2100x2100
Max. spindle speed	rpm/min	3000
Main motor power	kw	60
Gross power	kw	310
Dimensions (LxWxH)	mm	7800x4800x6580
