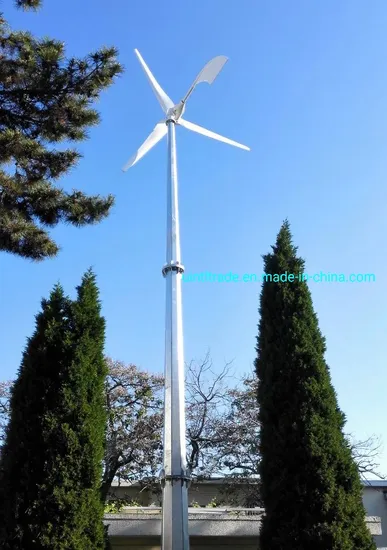

3000W 3kw Horizontal Axis Windmill for off/on Grid System

US$450.00-11,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
UHWT
Number of Blade
Three Blade
Rotating Shaft
Horizontal
Stress Way of Blade
Resistance
Power
<10kW
Phase
3 Phase
Certification
CE, ISO
Design Life Time
25 Years
Transport Package
Plywood Packaging
Specification
3000W
Trademark
UIT
Origin
China Mainland
HS Code
85023100
Production Capacity
500 Units/Year

Product Description

UHWT SERIES HORIZONTAL WIND TURBINE
PRODUCTION DESCRIPTION

Rated power--(W) 600 1000 2000 3000
Max power--(W) 720 1200 3000 4500
Blade diameter--(m) 2.5 2.8 3.8 4.5
Material of blades FRP
Quantity of blades 3
Rated rotor speed--(RPM) 400 360 320 240
Rated wind speed--(m/s) 8 8 8 9
Start wind speed--(m/s) 2 2 2 2
Working wind speed--(m/s) 3-25 3-25 3-25 3-25
Safe working speed--(m/s) 50 50 50 50
Output voltage--(V) 12,24,48 12,24,48 24-300 48-300
Generator type 3 phase AC
top weight(kg) 45 60 90 120
Material of enclosure Precision cast steel
Rated power--(W) 5000 10000 20000 30000
Max power--(W) 6500 12000 24000 33000
Blade diameter--(m) 5.4 7.2 10 15
Material of blades FRP
Quantity of blades 3
Rated rotor speed--(RPM) 250 180 160 150
Rated wind speed--(m/s) 9 10 11 12
Start wind speed--(m/s) 2 3 3 3
Working wind speed--(m/s) 3-25 4-25 4-30 4-30
Safe working speed--(m/s) 50 50 50 50
Output voltage--(V) 48-300 240-420 240-420 240-420
Generator type 3 phase AC
top weight(kg) 180 650 680 1200
Material of enclosure Precision cast steel
CUSTOMIZED COMPLETE SYSTEN
1). On grid system
2). Off grid system
PACKAGING
PROJECTS
ABOUT US
We UIT company(uintltrade.en.made-in-china.com) can design whole wind turbine generation system with all matched instruments.
Our professional engineer and design team will give you the best suggestion according to different requirements.
If you have interest, please contact us as below and leave your mail address or phone number and we will contact you at once.
