Portable Pipe Beveler Hot Applicated for Boiler Steel Pipe

Product Description

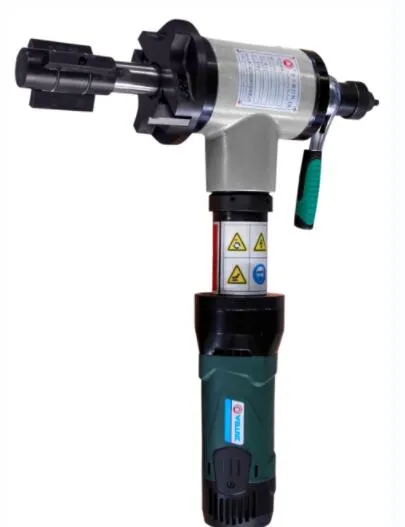

Portable Pipe Beveler hot applicated for Boiler Steel Pipe
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.
A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling.
With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power etc.

Specifications for Portable Pipe Beveler hot applicated for Boiler Steel Pipe

Model Type	Spec	Capacity Inner Diameter	Wall thickness	Rotation Speed
		ID MM	Standard /MM
1) ISE Driven By Electric 2) ISP Driven By Pneumatic	30	18-28	<=15	50r/min
	80	28-76	<=15	55r/min
	120	40-120	<=15	30r/min
	159	65-159	<=20	35r/min
	252-1	80-240	<=20	18r/min
	252-2	80-240	<=75	16r/min
	352-1	150-330	<=20	14r/min
	352-2	150-330	<=75	14r/min
	426-1	250-426	<=20	12r/min
	426-2	250-426	<=75	12r/min
	630-1	300-600	<=20	10r/min
	630-2	300-600	<=75	10r/min
	850-1	600-820	<=20	9r/min
	850-2	600-820	<=75	9r/min

Features for Portable Pipe Beveler hot applicated for Boiler Steel Pipe
1,Cold cutting, without influence the material of the pipe
2,ID mounted, adopt T structure
3,Varity of beveling shape: U, Single-V, double-V,J beveling
4,It can also be used for repairing inner wall and deep hole processing.
5,Working range: Each model with a wide working range for operation.
6,Driven motor: Pneumatic and Electric
7,Customized machine is acceptable

Main Function for Portable Pipe Beveler hot applicated for Boiler Steel Pipe
1,Pipe end beveling
2,Inside beveling
3,Pipe facing
Machine Packing for Portable Pipe Beveler hot applicated for Boiler Steel Pipe

---
