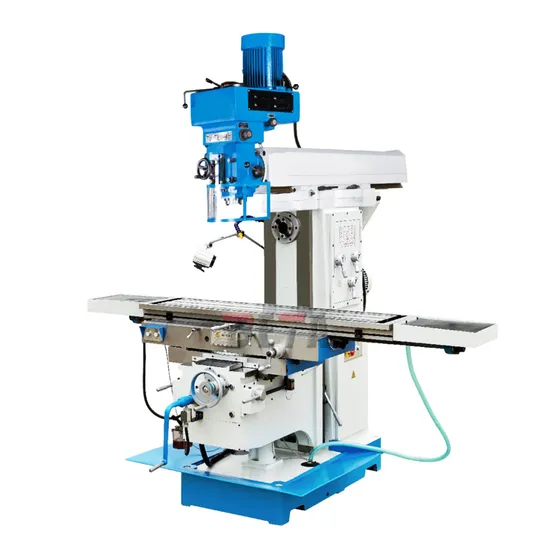

| Model | X6336 |
| Max. drilling diameter | Φ10mm (steel) |
| Max.vertical milling diameter | Φ25mm |
| Spindle taper | 7:24 ISO40( vertical spindle) 7:24 ISO50(horizontal spindle) |
| Spindle speed range | 70~3620 r.p.m. ( vertical spindle) 58~1800 r.p.m.(horizontal spindle) |
| Spindle speed steps | 10 steps ( vertical spindle) 12 steps (horizontal spindle) |
| Vertical spindle sleeve travel | 150mm |
| Rotary angle of vertical milling head. | ±45° |
| Table size | 1650 mm x 360 mm |
| Max. travel of table(longitudinal/cross) | 1300 mm /300 mm |
| T-slot (number-width-distance) | 3/14mm/95mm |
| Distance between vertical spindle axis and guideway surface of column | 160mm-660mm |
| Distance between horizontal spindle axis and table surface. | 0-420mm |
| Table feed range | X/Y 25-800mm/min, Z 8-267mm/min |
| Rapid feed(X/Y/Z) | 1000/1000/335mm/min |
| Main motor power(Ver./ Hor.) | 3.7KW / 4KW |
| Feed servo motor | 2.36KW 15N/m |
| Power of coolant pump | 90W |
| Overall dimension (L×W×H) | 2550*2070*2650mm |
| Net weight | 2800 kg |
| Packing size (L×W×H) | 2070*2280*2560mm |
| Gross weight | 3100 kg |
