US$30,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Full-Automatic
Power
Can Use Electric Motors or Diesel Engine
Mobile
Can Make Fixed Type or Mobile Type
Transport Package
Plywood Box
Specification
8.5m length, 2.7m width, 4.2m height
Production Capacity
2000 Sets Per Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description

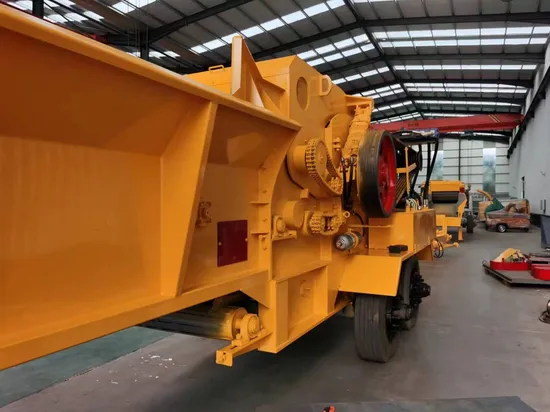

The horizontal wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system and electric control system.
Sketch
Parameter:
| Type | HX1260-500 | HX1400-500 | HX1600-600 | HX1400-800 | HX1600-800 |
| Rotor diameter (mm) | 800 | 800 | 800 | 1050 | 1100 |
| Rotational speed (rpm) | 650 | 760 | 760 | 900 | 860 |
| Rotor type | blades hammer rotor | blades hammer rotor | blades hammer rotor | blades hammer rotor | blades hammer rotor |
| Screen size (mm) | As required | As required | As required | As required | As required |
| Feed power (kw) | 11 + 7.5 | 11 + 7.5 | 11 + 7.5 | 11 + 7.5 | 15+7.5 |
| Hydraulic control (kw) | 3 | 3 | 4 | 4 | 4 |
| Main motor (kw) | 160 | 200 | 250 | 315 | 350 |
| Discharge power (kw) | 4 + 5.5 | 4 + 11 | 5.5 + 7.5 | 5.5 + 11 | 4+5.5 |
| Input conveyor length | 4000mm | 4000mm | 6000 mm | 6000 mm | 6000mm |
| Output conveyor length | 10000 mm | 10000 mm | 10000 mm | 10000 mm | 10000mm |
| Chips size (mm) | 30-50 | 30-50 | 30-50 | 30-50 | 30-50 |
| Throughput (t per h) | 10-15 TPH | 15-20 TPH | 20-30 TPH | 20-30 TPH | 30-40 TPH |
| Input size (mm) | 1250-500 | 1400-500 mm | 1600-600 mm | 1400-800 mm | 1600mm-800mm |
| Size (m) | 7.5 x 2.8 x 2.4 | 7.3 x 3 x 2.6 | 9.9x3x3.1 | 9.9 x 3 x 3.3 | 10.5x3x3.9 |
| Weight (t) | 17.3 | 19.5 | 23.8 | 29.1 | 33.2 |
| Shipment | 1 x 40' Open top container | 1 x 40' FR | 1x40'FR+ 1x20GP | 1 x 40' FR+ 1x 20'GP | 1 x 40' FR+ 1x 20'GP |
Discharged wood chip size can ajusted based on clients requirement
Control system(extra cost is required if use ABB brand soft starter),Spare parts(screen,blade,hammer)
Production workshop:
Related certificates
Shipment
Working sites: You May Have Following Questions:
Q1:Are You Trading Company or Factory?
We,Shandong Hongxin Machinery is a Factory with 21 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like blade, belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your required raw material.
>>
