Acetylene Bottles with Cylinder Safety Valve Guards

Product Description

40L Acetylene Bottles,Industrial Empty Acetylene Cylinders(C2H2:7 KG),Welding Acetylene(C2H2) Gas Cylinders 40 Liter With Caps are for Acetylene Gas Delivery & Supply System.
Main Specs of 40L Empty Acetylene Cylinders(C2H2:7 KG) W/ Cylinder Caps/Steel Valve Guards: -Water capacity: 40 Liter; Mat.: HP295;
-W. P: 1.0~3.0Mpa; OD=258mm; -G. W.: 36kg; (Filling Weight. Of ACETONE: 13.6KG; Filling Weight. Of AC ETYLENE: 7.2KG) -Height: ~1, 045mm; -Color: Confirmed as your preferred(BROWN); -Connecting thread: : PZ39(to-be-confirmed); -With OPTIONAL C2H2 Valves; -Packaging:NEGOTIABLE. -Applied standard: ISO3807-2.

Nominal Capacity of Hot Sale Acetylene Cylinders		40L
Nominal Diameter		250mm
Limited Filling Pressure(15c)		1.52Mpa
Hydrostatic Test Pressure		5.2Mpa
Air Test Pressure		3 Mpa
Material properties	Compressive Strength	≥1.8N/mm2
	Porosity	90~92%
	Volume Density	≤270g/L
	Shoulder Axia Gap	≤2.5mm
Solvent		acetone
Filling Gas Quantity		Approx 7.2kg

*Note: Various types of Acetylene Valves, cylinder caps, steel valve guards are optional.
+
Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of cutting, welding, illumination, chemical analysis, military projects and so on. There are too many advantages of safety, energy conservation, convenience, little pollution so and ao fourth.
Our products are welded by high grade and low alloy steel plate, all C2H2 cylinders are filled with porous mass calcium silicate material. Our products adopt unique techniques, the quality is controled precisely. The products have the advantages of high porosity, much filling gas and so on. Our manufactured acetylene cylinders have the stable quality, safe economy.

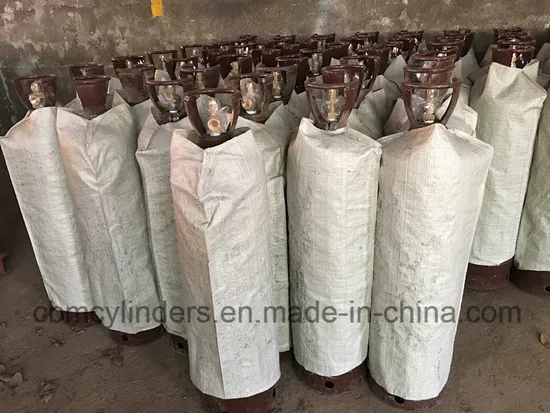

Referenced Photo of various types of Seamless Steel / Welding Dissolved Acetylene Cylinders W/ Caps or Steel

*Referenced specs of 40L popular Dissolved Acetylene Cylinders:

Nominal Capacity of Hot Sale Acetylene Cylinders		40L
Nominal Diameter		250mm
Limited Filling Pressure(15c)		1.52Mpa
Hydrostatic Test Pressure		5.2Mpa
Air Test Pressure		3 Mpa
Material properties	Compressive Strength	≥1.8N/mm2
	Porosity	90~92%
	Volume Density	≤270g/L
	Shoulder Axia Gap	≤2.5mm
Solvent		acetone
Filling Gas Quantity		Approx 7.2kg

*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:
-1). Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.
NOTES: -a). Various types of acetylene gas cylinder valves,cylinder caps,steel valve guards can be optional; -b). We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2Dissolved Acetylene Cylinders(2L~60L).
Anyway,should you have any intersts or some more info needed on our acetylene gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime! Key Contact: Ethan Liu (Exp. Mgr)
