US$35,000.00-55,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control

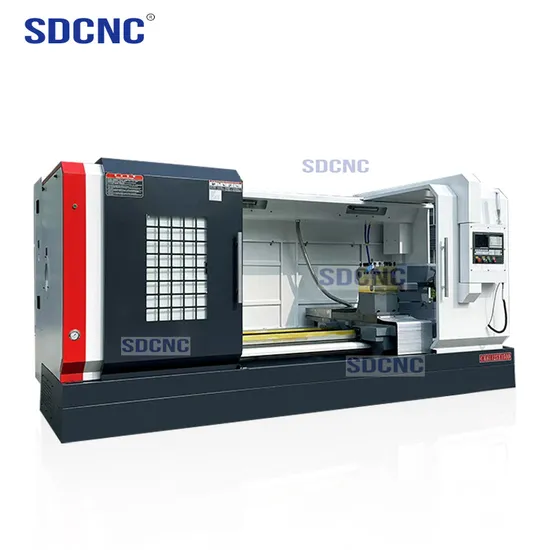

Product Name
CNC Lathe Machine
Machine Type
Flat Bed CNC Lathe
Keyword
Automatic CNC Lathe Machine
Transport Package
Wood Packing
Specification
5600X2100X2200
Packaging & Delivery
Package Size
5600.00cm * 2100.00cm * 2200.00cm
Package Gross Weight
11800.000kg
Product Description
SPECIFICATIONS
1.The dimension of spindle box is superior to that of common type, and the overall rigidity is strong.
2. Ground-type bed with small geometric deformation in integral casting.
3. The main motor adopts frequency conversion motor, and the torsion is suitable for powerful turning.
4. Widening and Thickening Overtime, Choosing National standard Heavy Tool Frame.
5. Large modulus gears and standard three-axle three-gear are used in the spindle box.
Technical parameter:
| Model | Unit | CK61125B |
| Max swing over bed | mm | 1250 |
| Max swing over carriage | mm | 850 |
| Distance between centers | mm | 1500,3000,4000 |
| Spindle bore | mm | 130 |
| Spindle taper | | MT6 |
| Spindle speed and steps | r/min | 2 steps 4-300 |
| Four jaw chuck size | mm | 1000 |
| Distance from spindle to ground | mm | 1275 |
| X axis rapid moving speed | m/min | 4 |
| Z axis rapid moving speed | m/min | 4 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 1350,2850,3850 |
| Tail stock quill diameter | mm | 140 |
| Tail stock quill travel | mm | 300 |
| Tail stock quill taper | | MT6 |
| Guide way width | mm | 755 |
| Tool post size | mm | 300x300 |
| Tool post shrank size | mm | 40x40 |
| Re-positioning accuracy | mm | 0.005 |
| Main motor power | kw | 22 |
| Coolant pump motor | W | 125 |
| Machine width and height | mm | 2100X2125 |
| Machine length | | |
| 1500 | mm | 4800 |
| 3000 | mm | 6300 |
| 4000 | mm | 7300 |
| Machine weight | | |
| 1500 | kg | 11800 |
| 3000 | kg | 13500 |
| 4000 | kg | 14200 |
| Max loading capacity | | |
| 1500 | kg | 6000 |
| 3000 | kg | 6500 |
| 4000 | kg | 7000 |
>>
