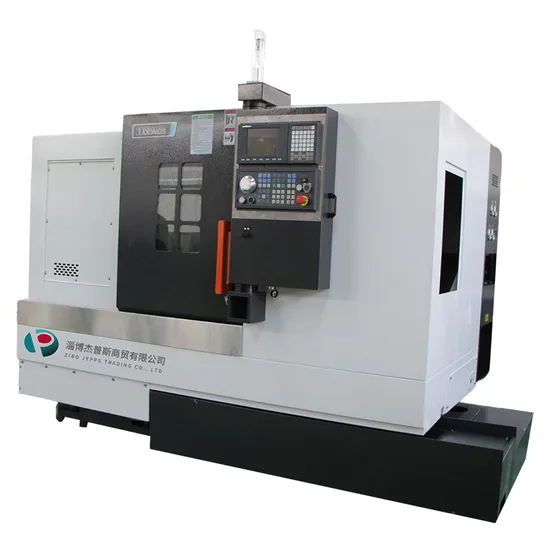

Jepps Hot Selling Tck36A/Tck46A/Tck50A Slant Bed CNC Lathe Machine

Product Description

Prodct Details
Main feature
This China slant bed and linear guide CNC lathe machine is applicable to automobile, motorcycle, electronics, aerospace, oil and other industry. This China slant bed and linear guide CNC lathe machine could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk. 1. 45 degrees slant bed CNC lathe machine. 2. Higher accuracy Taiwan linear guide. 3. Chip conveying capacity is large and convenient, customer could choose. 4. Chip conveying in the front or in the back. 5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure. 6. Gang type tool post. 7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds. 8. Use advanced centralized lubrication system uses. 9. Machine with full protection design,waterproof debris reliable, easy maintenance.
Specification

MODEL				TCK36A	TCK46A	TCK56A	TCK66A
Max swing over bed			mm	φ360	φ460	φ560	φ660
Max swing over cross slide			mm	φ140	φ170	φ360	400
Distance between centers			mm	300	350	500	600
Max turning length			mm	300	350	500	700
Screw specifications	X			2510	3210	3212	4010
	Z			3210	3210	3212	4010
Spindle hole			mm	φ48	φ56	φ65	Φ85
Bar capacity			mm	φ41	45	φ50	Φ75
Spindle nose				A2-5	A2-5	A2-6	A2-8
Spindle speed			rpm	4000	3500	3500	2800
Tailstock diameter			mm	φ65	φ70	φ74	φ100
Tailstock taper			No	MT4	MT5	MT5#	MT5
Tailstock travel			mm	200	200	250	500
Electric turret type			station	8	8	8	8
motor torque		X	N.M	6	7.5	10	10
		Z	N.M	6	7.5	10	10
X travel			mm	170	240	200	280
Z travel			mm	350	400	550	600
Minimum setting unit			mm	0.01	0.001	0.001	0.001
Main motor			KW	5.5	5.5	7.5(servo)	11
weight			Kg	2400	3000	4250	5000
dimension			mm	2200x1600x1850	2500x1700x1890	2950×1860×1850	3700x2000x2000
