Product Details
Product Description
Product Description
Basic Info.
Model NO.
HP-CSD450
After-sales Service
Lifetime Technical Support
Dredging Depth
14m
Discharge Distance
1500m
Certification
CCS/BV/ISO9001/Zc/BV/Dnv
Hydraulic System
Full Hydraulic Rexroth
Transport
in Bulk
Engine
Weichai/Cummin/Jichai
Transport Package
Yes
Specification
4000m3/H
Trademark
HengPeng
Origin
Huanglou, Qingzhou City, Shandong Province, China
HS Code
89051000
Production Capacity
50sets
3.Specification:
| No. | Item | Specification |
| 1 | Product Name | HP-CSD450 |
| 2 | Total Length
| 44.00m
|
| 3 | Hull Length
| 35.00m
|
| 4 | Hull Width | 8.00m |
| 5 | Hull Depth
| 2.20m
|
| 6 | Main Engine
| 895kw/ 1193kw |
| 7 | Dredging Depth
| 14m |
| 8 | Pump Water Flow Capacity
| 4000m3/h
|
| 9 | Standard Discharge Distance
| 1500m
|
| 10 | Working Weight
| 300T
|
| 11 | Winches
| 3 Sets
|
| 12 | Operation System
| The most advanced Hydraulic and PLC control system
|
| 13 | Delivery Time
| 120-150days.(There is stock available in the workshop, and delivery will be made within 7 days)
|
Product Description
Cutter Head Suction Dredger Made in Heng Peng Shipyard
1.Introduction:
The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.
The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

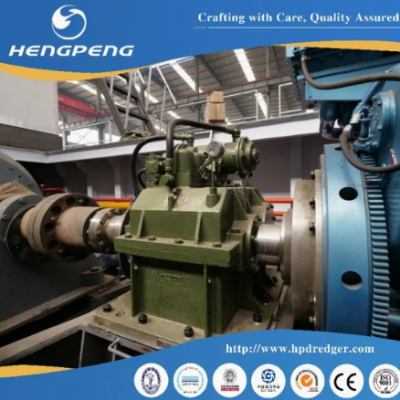

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the YS-CSD450 dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features of the dredger are the dredger is powered by a Marine engine. The main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ).
2.Features:
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available
Hengpeng After sales:
1. Lifetime Technical Support
2. 24-hour service response mechanism
3. Making an excellent filing of customers for long-term following-up service.
4. All the dredgers can be Customized.
5. Field Installation,commissioning,and training by our engineers
6. Provide professional service and providesolution in a timelymanner.
7. 12 months free warranty, free repair services, and supportthird party inspection.
8. Sending engineers to assemble and test the machine within theperiod as agreed in the contract.
9. Ensure the supply of maintenance spare parts, and shipyard warehouse inventory of dredger/barge parts can quick and efficient supply in a short period of time;
>>
